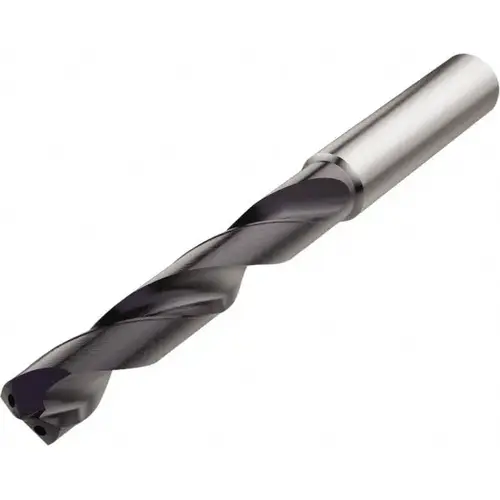

Seco 3046347 Jobber Length Drill Bit: 7/16" ( 0.4375") Dia, 140 deg Point, Solid Carbide TiAlN

Item #: 3046347 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$466.45

/each
SAVE UP TO 46.65
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

118.00

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

SD205A

Point Type

Standard

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

TiAlN

Coolant Through

No

Double Margin

No

Drill Bit Size (Decimal Inch)

0.4375

Drill Bit Size (Inch)

7/16

Drill Bit Size Range (Decimal Inch)

0.4000 - 0.5000

Drill Point Angle

140 degrees

Flute By Diameter Ratio

6xD

Flute Length (Decimal Inch)

2.7953

Flute Length (mm)

71.00

Maximum Drilling Depth (Decimal Inch)

2.7953

Number of Flats

0

Overall Length (Decimal Inch)

4.6457

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.4724

Shank Diameter (mm)

12.00

Shank Length (Decimal Inch)

1.7717

Shank Length (mm)

45.00

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Maximum Drilling Depth (mm)

56.00

Specification Designation

ANSI

Drill Point Length (Decimal Inch)

0.0795

Product Overview
Jobber Length Drill Bit: 7/16" ( 0.4375") Dia, 140 deg Point, Solid Carbide TiAlN, 4.6457" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD205A
