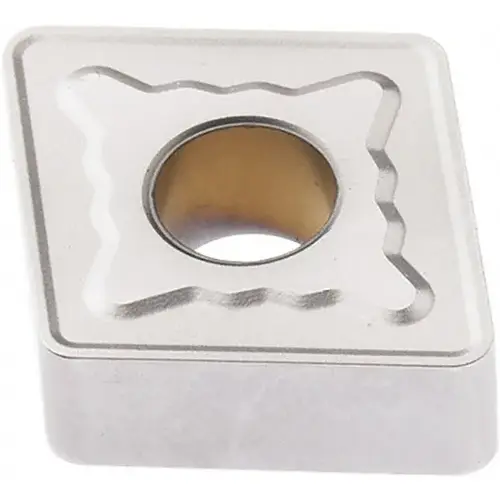

Seco 3096312-XCP10 Turning Insert: CNMG434-MR7 TP3501, Solid Carbide - pack of 10

Item #: 3096312-XCP10 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$214.55

/package
SAVE UP TO 21.46
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 76 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

CNMG120416-MR7

Proprietary Coating Designation

Duratomic

Length Range (Decimal Inch)

0.5000 - 0.6000

Manufacturer Grade

TP3501

Hole Diameter (Mm) ( - 0 Decimals)

5.20

Multi-Use Application

Boring

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2028

Tolerance Code

M

Insert Size Code

434

Insert Style

CNMG

Secondary Workpiece Material Code

M

Chip Breaker

MR7

Insert Shape Code

C

Full Radius

No

Clearance Code

N

Insert Shape

Diamond

Corner Radius (Inch)

1/16

Inscribed Circle (Decimal Inch)

0.5000

Wiper Edge

No

Insert Hand

Neutral

Secondary Workpiece Material

Stainless Steel

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.4449

Lead Angle

80

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1874

Insert Length (Decimal Inch)

0.5079

Insert Holding Method

Clamp

Coating Classification

Duratomic

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P20

Manufacturers Catalog Number

03096312

Corner Radius (Decimal Inch)

0.0630

Coating/Finish

TiCN

Coating Process

CVD

Series

CNMG-MR7

Insert Material

Carbide

Included Angle

80

Standards

ANSI

Number of Cutting Edges

4

Cutting Edge Style

T-Land

Product Overview
Turning Insert: CNMG434-MR7 TP3501, Solid Carbide TiCN & Al2O3 Coated, Neutral, 1/2" Inscribed Circle, 1/16" Corner Radius, 80 degree Diamond, Series CNMG
