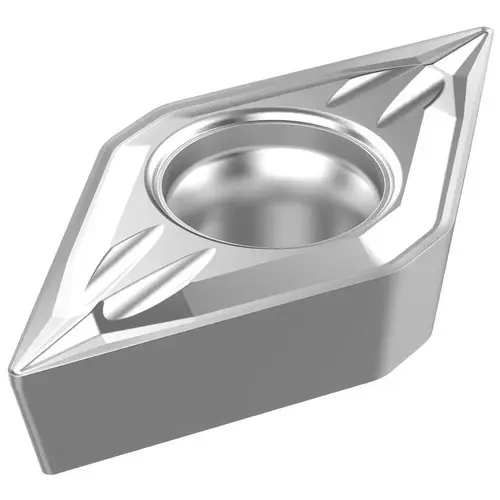

Turning Insert: DCMT070204-F1 TP3501, Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 3096352 Turning Insert: DCMT070204-F1 TP3501, Carbide TiCN

Item #: 3096352 by Seco

See reviewsSee reviews
See reviews summary

$12.39

/each
SAVE UP TO 1.24
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

DCMT-F1

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

03096352

Material Grade

P20

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

Duratomic

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6142

Insert Thickness (Decimal Inch)

0.0937

Insert Thickness (Inch)

3/32

Lead Angle

55

Maximum Depth of Cut (Decimal Inch)

0.2913

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

C

Full Radius

No

Insert Shape Code

D

Chip Breaker

F1

Secondary Workpiece Material Code

M

Insert Style

DCMT

Insert Size Code

21.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Back Turning

Chip Breaker Operation

Finishing

Manufacturer Grade

TP3501

ISO Size Code

070204

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

21.51

ISO Insert Code

DCMT070204

Proprietary Coating Designation

Duratomic

Iso Code

DCMT070204-F1

ANSI Insert Code

DCMT21.51

Product Overview
Turning Insert: DCMT070204-F1 TP3501, Carbide TiCN, Al2O3 & Cr Coated, Neutral, 0.6142" Long, 1/4" Inscribed Circle, 0.0157" Corner Radius, 55 ° Diamond 550, Series DCMT-F1
