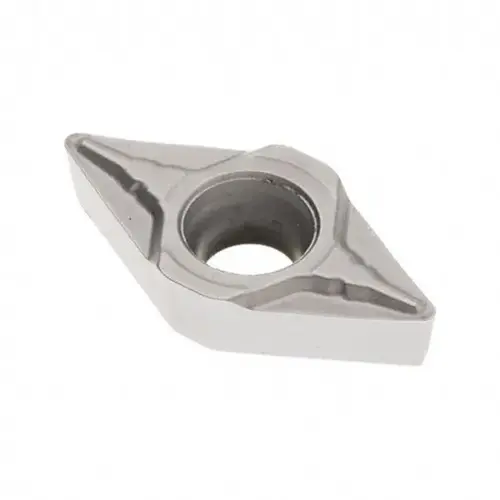

Seco 3096358-XCP10 Turning Insert: DCMT11T302-F1 TP3501, Solid Carbide - pack of 10

Item #: 3096358-XCP10 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$340.85

/package
SAVE UP TO 34.09
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55degree

Insert Material

Carbide

Series

DCMT-F1

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

03096358

Material Grade

P20

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

Duratomic

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.9134

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

55degree

Maximum Depth of Cut (Decimal Inch)

0.4488

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/128

Insert Shape

Diamond 55

Clearance Code

C

Full Radius

No

Insert Shape Code

D

Chip Breaker

F1

Secondary Workpiece Material Code

M

Insert Style

DCMT

Insert Size Code

32.50.5

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1772

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Back Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.50

Manufacturer Grade

TP3501

Length Range (Decimal Inch)

0.7000 - 10.0000

Corner Radius (mm)

0.20

Proprietary Coating Designation

Duratomic

Iso Code

DCMT11T302-F1

Product Overview
Turning Insert: DCMT11T302-F1 TP3501, Solid Carbide TiCN & Al2O3 Coated, Neutral, 3/8" Inscribed Circle, 0.2 mm Corner Radius, 55 degree Diamond, Series DCMT
