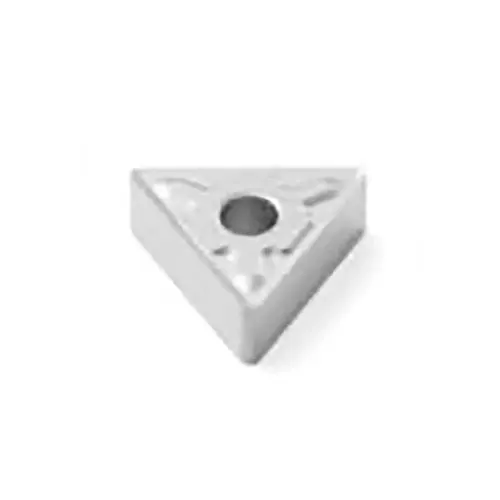

Seco 3096564-XCP10 Turning Insert: TNMG322-MF3 TP3501, Solid Carbide - pack of 10
Item #: 3096564-XCP10 by Seco
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
TNMG160308-MF3
Proprietary Coating Designation
Duratomic
Length Range (Decimal Inch)
0.6000 - 0.6500
Manufacturer Grade
TP3501
Hole Diameter (Mm) ( - 0 Decimals)
3.80
Multi-Use Application
Back Turning
Inscribed Circle (Inch)
3/8
Relief Angle
0
Hole Diameter (Decimal Inch)
0.1500
Tolerance Code
M
Insert Size Code
322
Insert Style
TNMG
Secondary Workpiece Material Code
M
Chip Breaker
MF3
Insert Shape Code
T
Full Radius
No
Clearance Code
N
Insert Shape
Triangle
Corner Radius (Inch)
1/32
Inscribed Circle (Decimal Inch)
0.3750
Wiper Edge
No
Insert Hand
Neutral
Secondary Workpiece Material
Stainless Steel
Rake
Negative
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.5709
Lead Angle
60
Insert Thickness (Inch)
1/8
Insert Thickness (Decimal Inch)
0.1252
Insert Length (Decimal Inch)
0.6496
Insert Holding Method
Clamp
Coating Classification
Duratomic
Width (Decimal Inch - 4 Decimals)
0.6496
Vendor Drop Ship
N
UNSPSC Code
23242105
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
P20
Manufacturers Catalog Number
03096564
Corner Radius (Decimal Inch)
0.0315
Coating/Finish
TiCN
Coating Process
CVD
Series
TNMG-MF3
Insert Material
Carbide
Included Angle
60
Standards
ANSI
Number of Cutting Edges
6
Cutting Edge Style
Chamfered & Honed
Product Overview
Turning Insert: TNMG322-MF3 TP3501, Solid Carbide TiCN & Al2O3 Coated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series TNMG
