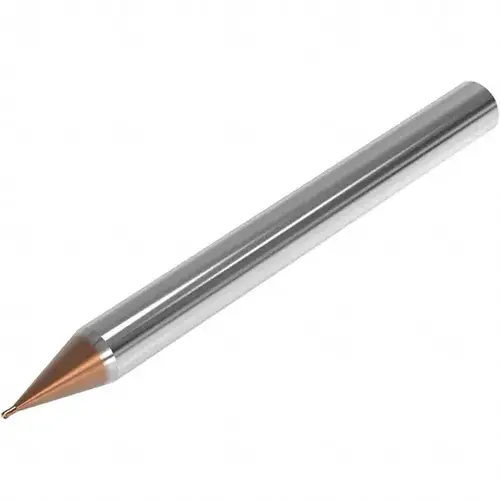

Seco 3204984 Ball End Mill: 0.0315" Dia, 2 Flute, Solid Carbide HXT

Item #: 3204984 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$134.34

/each
SAVE UP TO 13.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 31 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Helical

Shank Type

Straight-Cylindrical

Overall Length (mm)

50.00mm

Helix Angle

28

Number of Flutes

2

Chipbreaker

No

Length Type

Extended

Cutting Direction

Right Hand

Series

JMB112

System of Measurement

Metric

Variable Helix

No

Coating/Finish

HXT

Coolant Through

No

Manufacturers Catalog Number

JMB112008G1BZ2.0-HXT

Material Grade

Micrograin

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

Shank Diameter (mm)

6.00mm

UNSPSC Code

27112803

Vendor Drop Ship

N

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.0315

Neck Length (Decimal Inch)

0.0315

Single Or Double End

Single

Variable Index

No

Length of Cut (mm)

0.80mm

Reach Length (mm)

1.60

Mill Diameter Tolerance

+0.00/-0.01 mm

Mill Diameter (mm)

0.80mm

Nose Radius (mm)

0.40

Neck Length (mm)

0.80

Neck Diameter (mm)

0.76

TIR Maximum (mm)

0.01

Shank Diameter Tolerance

h5

Product Overview
Ball End Mill: 0.0315" Dia, 2 Flute, Solid Carbide 50 mm OAL, 6 mm Shank Dia, 28 degree Helix, HXT Coated, Single End, Series JMB112
