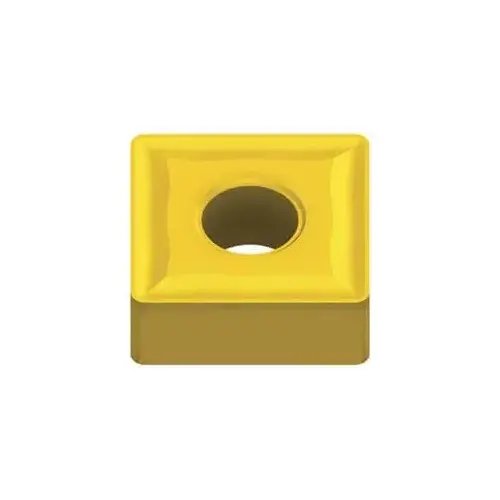

Turning Insert: SNMG433-MR4-48 883, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 3215 Turning Insert: SNMG433-MR4-48 883, Solid Carbide Bright/Uncoated

Item #: 3215 by Seco

See reviewsSee reviews
See reviews summary

$13.96

/each
SAVE UP TO 1.40
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90degree

Insert Material

Carbide

Series

SNMG-MR4

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

00003215

Material Grade

S10

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

90degree

Maximum Depth of Cut (Decimal Inch)

0.4528

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

Square

Clearance Code

N

Full Radius

No

Insert Shape Code

S

Chip Breaker

MR4

Secondary Workpiece Material Code

M

Insert Style

SNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2028

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Insert Length (Inch)

1/2

Manufacturer Grade

883

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Proprietary Coating Designation

Uncoated

Iso Code

SNMG120412-MR4

Product Overview
Turning Insert: SNMG433-MR4-48 883, Solid Carbide Uncoated, 1/2" Inscribed Circle, 3/64" Corner Radius, 90 degree Square
