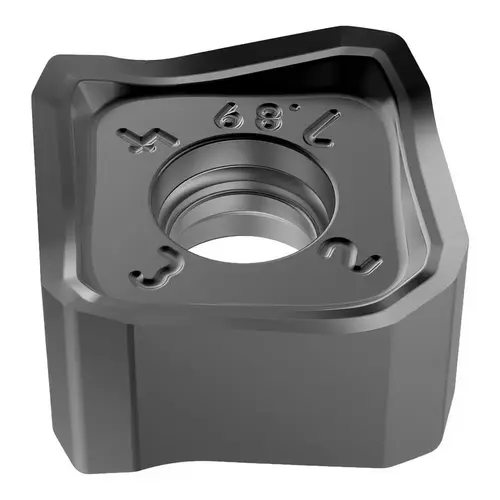

Seco 03241866 Milling Insert: MS2500, Solid Carbide TiCN
Item #: 03241866 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shape
Square
Cutting Edge Style
T-Land
Material Application
Steel
Length (mm)
14.00
ANSI Code
SNMX1407ZNTR-M10
Number of Cutting Edges
8
Standards
ISO
Thickness (mm)
6.59
Insert Material
Solid Carbide
Series
SNMX-14
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0394
Length (Decimal Inch - 4 Decimals)
0.5512
Manufacturers Catalog Number
SNMX1407ZNTR-M10
Material Grade
Medium Grain
Primary Workpiece Material
Superalloys & Titanium
Primary Workpiece Material Code
S
Thickness (Decimal Inch - 4 Decimals)
0.2594
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5512
Width (mm - 2 Decimals)
14.00
Coating Classification
CVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.4213
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Steel
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.5512
Insert Shape
Square
Rake Angle
15
Chip Breaker
M10
Secondary Workpiece Material Code
P
Insert Style
SNMX
Insert Size Code
1407
Relief Angle
0.00
Included Angle Degree
90
Hole Diameter (Mm) ( - 0 Decimals)
0.00
Cutting Edge Effective Length (Decimal Inch)
0.4213
Manufacturer Grade
MS2500
Inscribed Circle Range (Decimal Inch)
0.5100 to 0.6000
Single or Double Sided Insert
Double
Cutter Series Compatibility
R220.54-14
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Inscribed Circle (mm)
14.00
Iso Code
SNMX1407ZNTR-M10
Product Overview
Milling Insert: MS2500, Solid Carbide TiCN, Al2O3 Coated, 6.59 mm Thick, 14 mm Wide
