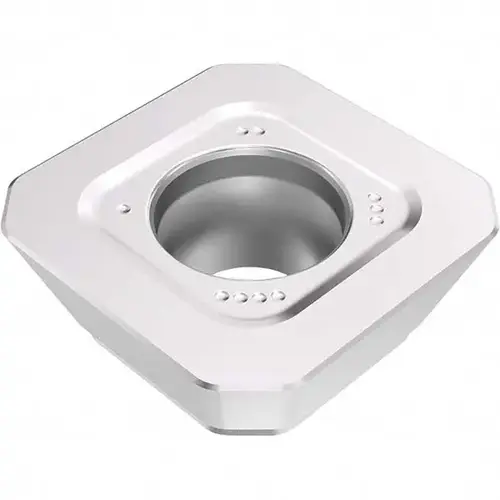

Milling Insert: SEEX1204AFTN-MD18, MP1501, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 3272970-XCP10 Milling Insert: SEEX1204AFTN-MD18, MP1501, Solid Carbide - pack of 10

Item #: 3272970-XCP10 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$477.53

/package
SAVE UP TO 47.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 28 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Square

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

SEEX1204AFTN-MD18

Number of Cutting Edges

4

Standards

ISO

Insert Material

Solid Carbide

Series

SEEX-12

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0441

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

SEEX1204AFTN-MD18

Material Grade

Fine Grain

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1874

Thickness (Inch)

3/16

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Width (mm - 2 Decimals)

8.70

Coating Classification

Duratomic

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3425

Multi-use Tool

Yes

Rake

Neutral

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

Square

Rake Angle

0

Chip Breaker

MD18

Secondary Workpiece Material Code

K

Insert Style

SEEX

Insert Size Code

1204

Hole Diameter (Decimal Inch)

0.1772

Relief Angle

20

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Cutting Edge Effective Length (Decimal Inch)

0.5000

Manufacturer Grade

MP1501

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Single

Cutter Series Compatibility

R217.53-12

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Iso Code

SEEX1204AFTN-MD18

Product Overview
Milling Insert: SEEX1204AFTN-MD18, MP1501, Solid Carbide Coated, 3/16" Thick, 8.7 mm Wide
