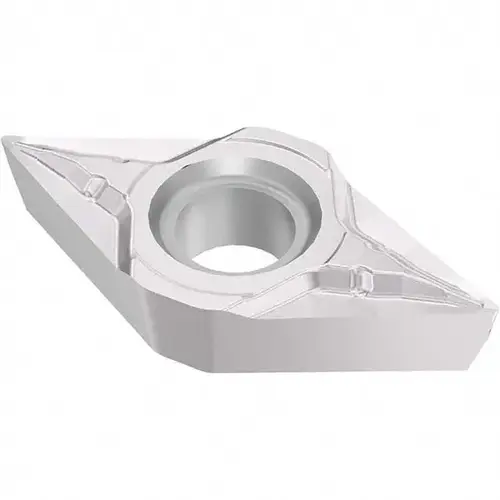

Seco 3276210-XCP10 Turning Insert: DCMT32.51-F1 TM2501, Solid Carbide - pack of 10
Item #: 3276210-XCP10 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DCMT-F1
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
03276210
Material Grade
M25
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
Duratomic
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.9158
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Lead Angle
55degree
Maximum Depth of Cut (Decimal Inch)
0.3795
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
Diamond 55
Clearance Code
C
Rake Angle
17
Full Radius
No
Insert Shape Code
D
Chip Breaker
F1
Secondary Workpiece Material Code
P
Insert Style
DCMT
Insert Size Code
32.51
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1772
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Back Turning
Manufacturer Grade
TM2501
Length Range (Decimal Inch)
0.7000 - 10.0000
Proprietary Coating Designation
Duratomic
Iso Code
DCMT11T304-F1
Product Overview
Turning Insert: DCMT32.51-F1 TM2501, Solid Carbide TiCN & Al2O3 Coated, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series DCMT
