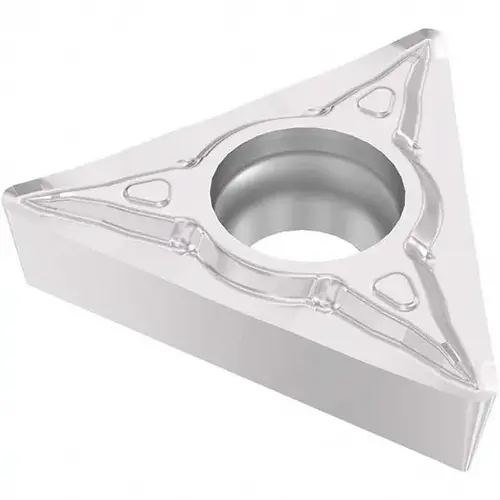

Seco 03276599 Turning Insert: TCMT32.52-F1 TM2501, Solid Carbide TiCN
Item #: 03276599 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
3
Standards
ANSI
Included Angle
60degree
Insert Material
Carbide
Series
TCMT-F1
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
03276599
Material Grade
M25
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6496in
Coating Classification
Duratomic
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.6496
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Lead Angle
60degree
Maximum Depth of Cut (Decimal Inch)
0.5724
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Triangle
Clearance Code
C
Rake Angle
17
Full Radius
No
Insert Shape Code
T
Chip Breaker
F1
Secondary Workpiece Material Code
P
Insert Style
TCMT
Insert Size Code
32.52
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1772
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Back Turning
Manufacturer Grade
TM2501
Length Range (Decimal Inch)
0.6000 - 0.6500
Proprietary Coating Designation
Duratomic
Iso Code
TCMT16T308-F1
Product Overview
Turning Insert: TCMT32.52-F1 TM2501, Solid Carbide TiCN & Al2O3 Coated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series TCMT
