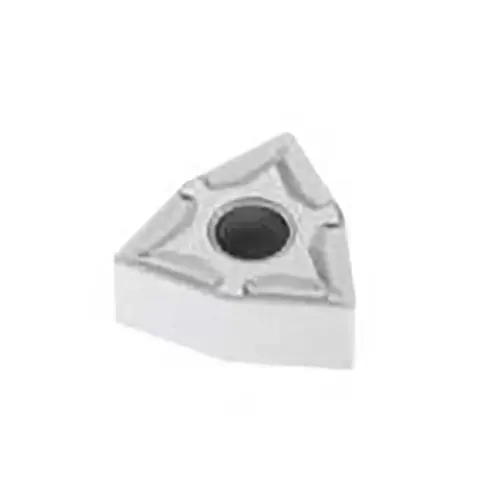

Seco 3276701 Turning Insert: WNMG332-M3 TP25, Solid Carbide TiCN
Item #: 3276701 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
6
Standards
ANSI
Included Angle
80
Insert Material
Carbide
Series
WNMG-M3
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
03276701
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.375
Width (Inch)
3/8
Coating Classification
CVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.5134
Insert Thickness (Decimal Inch)
0.1874
Insert Thickness (Inch)
3/16
Lead Angle
80
Maximum Depth of Cut (Decimal Inch)
0.2449
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Trigon
Clearance Code
N
Rake Angle
17
Full Radius
No
Insert Shape Code
W
Chip Breaker
M3
Secondary Workpiece Material Code
M
Insert Style
WNMG
Insert Size Code
332
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1500
Relief Angle
0
Inscribed Circle (Inch)
3/8
Multi-Use Application
Boring
Manufacturer Grade
TP25
Length Range (Decimal Inch)
0.5000 - 0.6000
Proprietary Coating Designation
Multilayer Coating
Iso Code
WNMG060408-M3
Product Overview
Turning Insert: WNMG332-M3 TP25, Solid Carbide TiCN & Al2O3 Coated, Neutral, 0.2567" Long, 3/8" Inscribed Circle, 0.0315" Corner Radius, 80 degree Trigon, Series WNMG
