Milling Insert: RDKW10T3M0T-8-MD06 MP2501, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

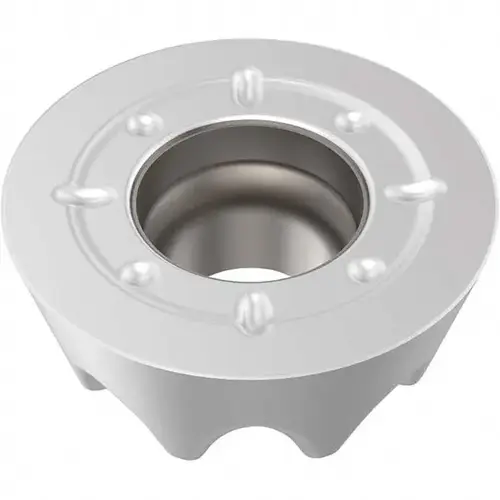

Seco 03280741 Milling Insert: RDKW10T3M0T-8-MD06 MP2501, Solid Carbide TiCN

Item #: 03280741 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$22.00

/each
SAVE UP TO 2.20
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 190 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Round

Cutting Edge Style

T-Land

Material Application

Steel

Length (mm)

10.00

ANSI Code

RDKW10T3M0T-8-MD06

Number of Cutting Edges

8

Standards

ISO

Insert Material

Solid Carbide

Series

RDKW-10

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.1969

Length (Decimal Inch - 4 Decimals)

0.3937

Manufacturers Catalog Number

RDKW10T3M0T-8-MD06

Material Grade

Fine Grain

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1563

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3937

Coating Classification

Duratomic

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.1969

Multi-use Tool

Yes

Rake

Neutral

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3937

Insert Shape

Round

Rake Angle

0

Chip Breaker

MD06

Secondary Workpiece Material Code

M

Insert Style

RDKW

Insert Size Code

10T3

Hole Diameter (Decimal Inch)

0.1378

Relief Angle

15.00

Included Angle Degree

360

Cutting Edge Effective Length (Decimal Inch)

0.1969

Manufacturer Grade

MP2501

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R217.29-05

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Inscribed Circle (mm)

10.00

Corner Radius (mm)

5.00

Iso Code

RDKW10T3M0T-8-MD06

Product Overview
Milling Insert: RDKW10T3M0T-8-MD06 MP2501, Solid Carbide TiCN & Al2O3 Coated, 5/32" Thick, 0.1563 " Thick, 0.3937" Wide
