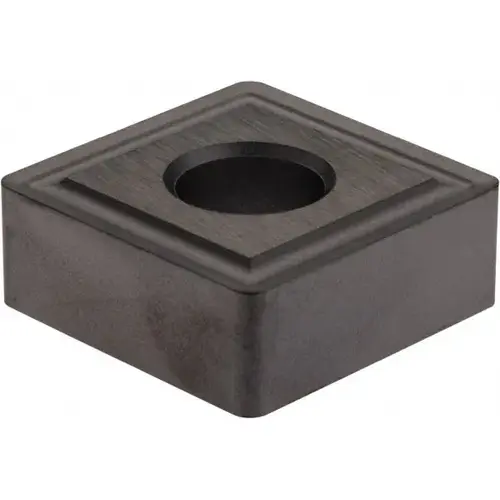

Turning Insert: SNMP432-M1-36 883, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 40583 Turning Insert: SNMP432-M1-36 883, Solid Carbide Bright/Uncoated

Item #: 40583 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$13.96

/each
SAVE UP TO 1.40
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90

Insert Material

Carbide

Series

SNMP-M1

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

00040583

Material Grade

S10

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.4685

Maximum Depth Of Cut (Fractional Inch)

15/32

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Square

Clearance Code

N

Full Radius

No

Insert Shape Code

S

Chip Breaker

M1

Secondary Workpiece Material Code

M

Insert Style

SNMP

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2028

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Insert Length (Inch)

1/2

Manufacturer Grade

883

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Proprietary Coating Designation

Uncoated

Iso Code

SNMG120408-M1

Product Overview
Turning Insert: SNMP432-M1-36 883, Solid Carbide Uncoated, 1/2" Inscribed Circle, 1/32" Corner Radius, 90 degree Square
