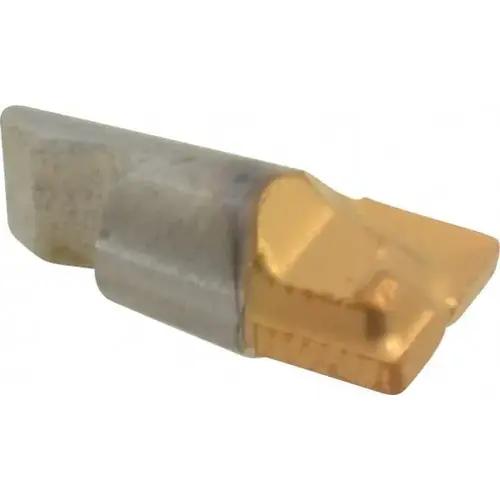

End Replaceable Milling Tip: MM060.236R1MD02 F30M F30M, Carbide - pack of 2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 4771-XCP2 End Replaceable Milling Tip: MM060.236R1MD02 F30M F30M, Carbide - pack of 2

Item #: 4771-XCP2 by Seco

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

0

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

MD02

Series

MM06

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0160

Length Of Cut (Decimal Inch - 4 Decimals)

0.1610in

Manufacturers Catalog Number

00004771

Material Grade

P20

Overall Length (Decimal Inch)

0.2010in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.2360in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.1610

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.2360

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM06

Maximum Depth of Cut (mm)

4.1

Milling Tip Type

Slotting

Manufacturer Grade

F30M

Functional Length (Decimal Inch)

0.2010

Functional Length (mm)

5.10

Milling Tip Full Description

MM06-0.236-R1-MD02

Extension From Holder (Inch)

0.2000

Product Overview
End Replaceable Milling Tip: MM060.236R1MD02 F30M F30M, Carbide 2 Flutes, 0.161" Max Depth of Cut, Series Minimaster
