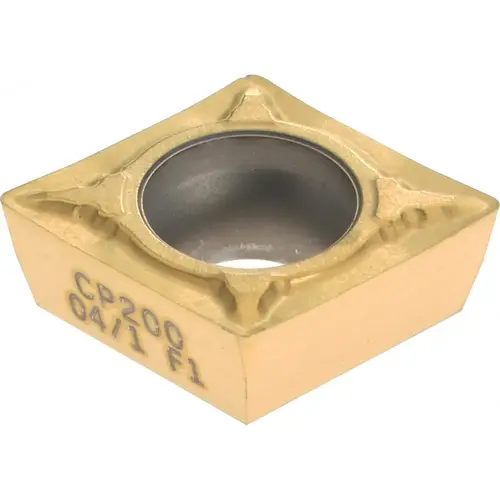

Seco 64906 Turning Insert: CPMT 32.51-F1 CP200, Solid Carbide TiAlN
Item #: 64906 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
CPMT-F1
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
00064906
Material Grade
M01
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.3819
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Lead Angle
80degree
Maximum Depth of Cut (Decimal Inch)
0.3386
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
Diamond 80
Clearance Code
P
Full Radius
No
Insert Shape Code
C
Chip Breaker
F1
Secondary Workpiece Material Code
P
Insert Style
CPMT
Insert Size Code
32.51
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1772
Relief Angle
11
Inscribed Circle (Inch)
3/8
Multi-Use Application
Boring
Manufacturer Grade
CP200
Length Range (Decimal Inch)
0.3000 - 0.4000
Proprietary Coating Designation
Multilayer Coating
Iso Code
CPMT09T304-F1
Product Overview
Turning Insert: CPMT 32.51-F1 CP200, Solid Carbide TiAlN & TiN Coated, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series CPMT
