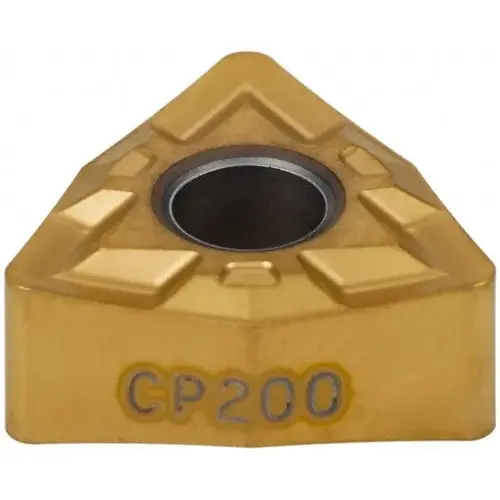

Seco 72312-XCP10 Turning Insert: WNMP332-MF1 CP200, Solid Carbide - pack of 10
Item #: 72312-XCP10 by Seco
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
6
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
WNMP-MF1
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
00072312
Material Grade
M01
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.5118
Insert Thickness (Decimal Inch)
0.1874
Insert Thickness (Inch)
3/16
Lead Angle
80degree
Maximum Depth of Cut (Decimal Inch)
0.2441
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Trigon
Clearance Code
N
Full Radius
No
Insert Shape Code
W
Chip Breaker
MF1
Secondary Workpiece Material Code
P
Insert Style
WNMP
Insert Size Code
332
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1500
Relief Angle
0
Inscribed Circle (Inch)
3/8
Multi-Use Application
Boring
Manufacturer Grade
CP200
Length Range (Decimal Inch)
0.5000 - 0.6000
Proprietary Coating Designation
Multilayer Coating
Iso Code
WNMG060408-MF1
Product Overview
Turning Insert: WNMP332-MF1 CP200, Solid Carbide TiAlN & TiN Coated, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series WNMP
