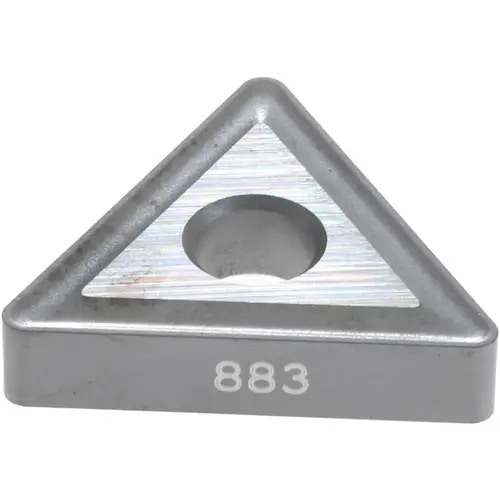

Turning Insert: TNMG322-MR4-48 883, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 7370 Turning Insert: TNMG322-MR4-48 883, Solid Carbide Bright/Uncoated

Item #: 7370 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$19.95

/each
SAVE UP TO 1.99
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 131 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Maximum Depth of Cut (Decimal Inch)

0.5709

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

N

Full Radius

No

Insert Shape Code

T

Chip Breaker

MR4

Secondary Workpiece Material Code

M

Insert Style

TNMG

Insert Size Code

322

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Back Turning

Chip Breaker Operation

Roughing

Manufacturer Grade

883

ISO Size Code

160308

Grade Characteristics

Special, Super Alloys (S) - High Wear-Resistance to High Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

322

ISO Insert Code

TNMG160308

Proprietary Coating Designation

Uncoated

Iso Code

TNMG160308-MR4

ANSI Insert Code

TNMG322

Cutting Edge Style

T-Land

Number of Cutting Edges

6

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

TNMG-MR4

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

00007370

Material Grade

S10

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6496

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6496

Insert Thickness (Decimal Inch)

0.1252

Insert Thickness (Inch)

1/8

Lead Angle

60

Product Overview
Turning Insert: TNMG322-MR4-48 883, Solid Carbide Uncoated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series TNMG
