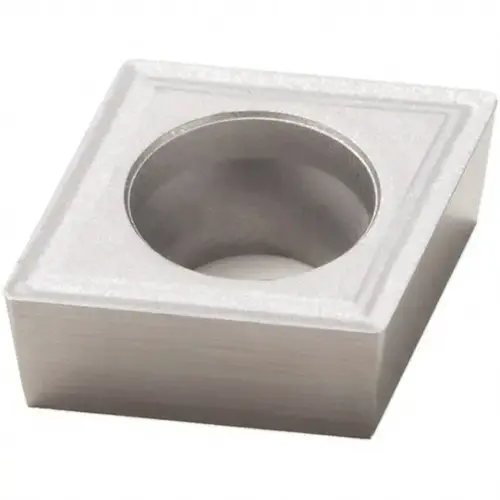

Seco 74016182 Turning Insert: CCMT432-F2 HX, Solid Carbide Bright/Uncoated
Item #: 74016182 by Seco
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
2
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
CCMT-F2
Coating Process
Uncoated
Coating/Finish
Bright/Uncoated
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
74016182
Material Grade
S10
Primary Workpiece Material
Superalloys & Titanium
Primary Workpiece Material Code
S
UNSPSC Code
23242105
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.5000in
Width (Inch)
1/2in
Coating Classification
Uncoated
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.5079
Insert Thickness (Decimal Inch)
0.1874
Insert Thickness (Inch)
3/16
Lead Angle
80degree
Maximum Depth of Cut (Decimal Inch)
0.4764
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/32
Insert Shape
Diamond 80
Clearance Code
C
Full Radius
No
Insert Shape Code
C
Chip Breaker
F2
Secondary Workpiece Material Code
M
Insert Style
CCMT
Insert Size Code
432
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2205
Relief Angle
7
Inscribed Circle (Inch)
1/2
Multi-Use Application
Boring
Manufacturer Grade
HX
Length Range (Decimal Inch)
0.5000 - 0.6000
Inscribed Circle (mm)
12.70
Proprietary Coating Designation
Uncoated
Iso Code
CCMT120408-F2
Product Overview
Turning Insert: CCMT432-F2 HX, Solid Carbide Uncoated, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CCMT
