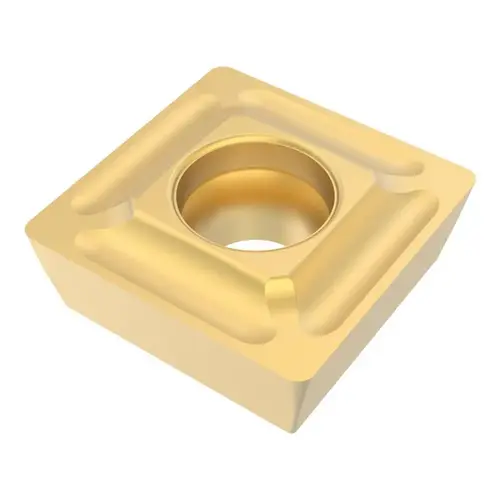

Milling Insert: SPMX060204-75, T25M, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 74016733-XCP10 Milling Insert: SPMX060204-75, T25M, Solid Carbide - pack of 10

Item #: 74016733-XCP10 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$288.22

/package
SAVE UP TO 28.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Square

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

SPMX060204-75

Number of Cutting Edges

4

Standards

ISO

Insert Material

Solid Carbide

Series

SPMX-06

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.2500

Length (Inch)

1/4

Manufacturers Catalog Number

SPMX060204-75

Material Grade

Medium Grain

Thickness (Decimal Inch - 4 Decimals)

0.0937

Thickness (Inch)

3/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2500

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

Square

Rake Angle

20

Chip Breaker

75

Secondary Workpiece Material Code

P

Insert Style

SPMX

Insert Size Code

060204

Hole Diameter (Decimal Inch)

0.1024

Relief Angle

11.00

Included Angle Degree

90

Inscribed Circle (Inch)

1/4

Cutting Edge Effective Length (Decimal Inch)

0.2500

Manufacturer Grade

T25M

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R215.49-3

Length Range (Decimal Inch)

0.0000 to 0.3200

Thickness Range (Decimal Inch)

0.0000 to 0.1000

Iso Code

SPMX060204-75

Product Overview
Milling Insert: SPMX060204-75, T25M, Solid Carbide Coated, 0.094" Thick, 1/4" Wide
