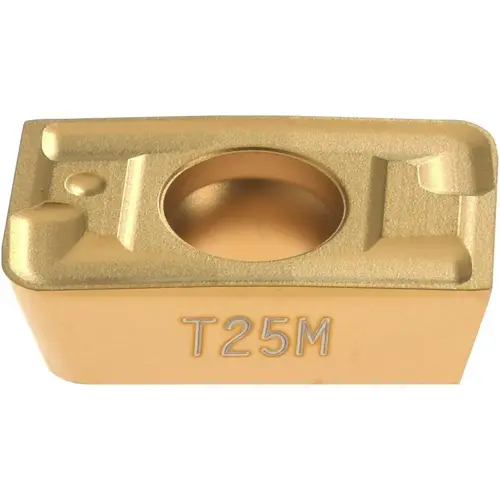

Milling Insert: APFT160416R-M13, T25M, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 74016844-XCP10 Milling Insert: APFT160416R-M13, T25M, Solid Carbide - pack of 10

Item #: 74016844-XCP10 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$548.62

/package
SAVE UP TO 54.86
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Parallelogram

Cutting Edge Style

Honed

Material Application

Steel

ANSI Code

APFT160416R-M13

Number of Cutting Edges

2

Standards

ISO

Insert Material

Solid Carbide

Series

APFT-16

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0630

Length (Decimal Inch - 4 Decimals)

0.6476

Manufacturers Catalog Number

APFT160416R-M13

Material Grade

Medium Grain

Thickness (Decimal Inch - 4 Decimals)

0.1945

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.6220

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

Parallelogram

Rake Angle

15

Chip Breaker

M13

Secondary Workpiece Material Code

P

Insert Style

APFT

Insert Size Code

160416

Hole Diameter (Decimal Inch)

0.1772

Relief Angle

11.00

Included Angle Degree

85

Inscribed Circle (Inch)

3/8

Cutting Edge Effective Length (Decimal Inch)

0.6476

Manufacturer Grade

T25M

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R217.69-16

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Iso Code

APFT160416R-M13

Product Overview
Milling Insert: APFT160416R-M13, T25M, Solid Carbide Coated, 0.187" Thick, 3/8" Wide
