End Replaceable Milling Tip: MM120.472B90MD05 T60M T60M, Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

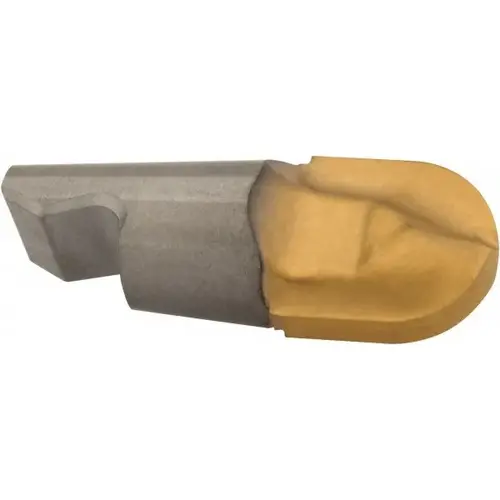

Seco 74017033 End Replaceable Milling Tip: MM120.472B90MD05 T60M T60M, Carbide TiAlN

Item #: 74017033 by Seco

See reviewsSee reviews
See reviews summary

$162.44

/each
SAVE UP TO 16.24
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

0

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

MD05

Series

MM12

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.2360

Length Of Cut (Decimal Inch - 4 Decimals)

0.4800in

Manufacturers Catalog Number

74017033

Material Grade

C5

Overall Length (Decimal Inch)

0.5560in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.4720in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.4800

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.4720

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM12

Maximum Depth of Cut (mm)

12.2

Milling Tip Type

Profile

Manufacturer Grade

T60M

Functional Length (Decimal Inch)

0.5560

Functional Length (mm)

14.12

Milling Tip Full Description

MM12-0.472-B90-MD05

Extension From Holder (Inch)

0.5560

Product Overview
End Replaceable Milling Tip: MM120.472B90MD05 T60M T60M, Carbide 2 Flutes, 0.483" Max Depth of Cut, Series Minimaster
