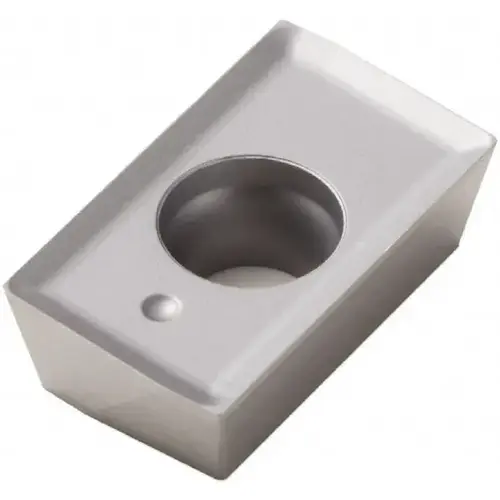

Milling Insert: APKT1604PDR-E12, HX, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 74018810 Milling Insert: APKT1604PDR-E12, HX, Solid Carbide Bright/Uncoated

Item #: 74018810 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$42.82

/each
SAVE UP TO 4.28
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 116 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

3/8

Insert Material

Solid Carbide

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.6220

Iso Code

APKT1604PDR-E12

Width (Decimal Inch - 4 Decimals)

0.3750

Secondary Workpiece Material

Cast Iron

Thickness (Decimal Inch - 4 Decimals)

0.1874

Relief Angle

11

Cutting Edge Style

Honed

Cutter Series Compatibility

R217.69-16

Rake

Positive

Material Grade

Fine Grain

Shape

Parallelogram

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Insert Holding Method

Screw

Coating/Finish

Bright/Uncoated

Rake Angle

22

Corner Radius (Inch)

1/64

Insert Style

APKT

Manufacturers Catalog Number

APKT1604PDR-E12

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Cutting Edge Effective Length (Decimal Inch)

0.6476

Manufacturer Grade

HX

Inscribed Circle (Inch)

3/8

Length (Decimal Inch - 4 Decimals)

0.6476

Secondary Workpiece Material Code

K

Standards

ISO

Inscribed Circle (Decimal Inch)

0.3750

Coating Process

Uncoated

Primary Workpiece Material

Non-Ferrous Metal

Corner Radius (Decimal Inch)

0.0157

Hole Diameter (Decimal Inch)

0.1772

Chip Breaker

E12

Length Range (Decimal Inch)

0.6000 to 0.6500

Multi-use Tool

Yes

Coating Classification

Uncoated

Insert Size Code

1604

Thickness (Inch)

3/16

Included Angle Degree

85

Material Application

Cast Iron

Number of Cutting Edges

2

ANSI Code

APKT1604PDR-E12

Series

APKT-16

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

N

Product Overview
Milling Insert: APKT1604PDR-E12, HX, Solid Carbide Uncoated, 0.187" Thick, 3/8" Wide
