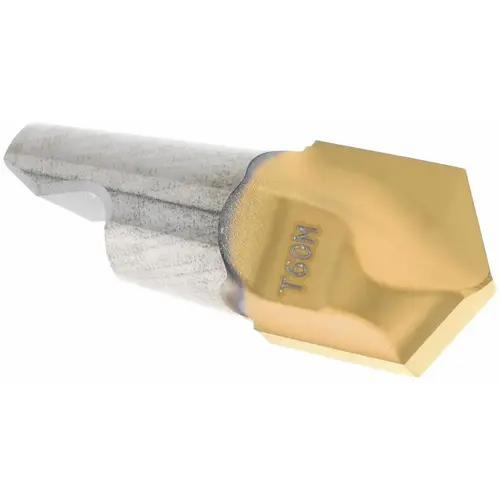

Seco 74034249 Center Drill Replaceable Milling Tip: MM080.315C120M03 T60M T60M, Carbide TiAlN

Item #: 74034249 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$115.48

/each
SAVE UP TO 11.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 28 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

M03

Series

MM08

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.2440

Length Of Cut (Decimal Inch - 4 Decimals)

0.0850

Manufacturers Catalog Number

74034249

Material Grade

C5

Overall Length (Decimal Inch)

0.372

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.315

Lead Angle

60

Maximum Depth of Cut (Decimal Inch)

0.0850

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.3150

Chamfer Angle

60

Included Angle Degree

120

Milling Tip Style

MM08

Maximum Depth of Cut (mm)

2.2

Milling Tip Type

Chamfer

Manufacturer Grade

T60M

Functional Length (Decimal Inch)

0.3720

Functional Length (mm)

9.46

Milling Tip Full Description

MM08-0.315-C120-M03

Extension From Holder (Inch)

0.3720

Product Overview
Center Drill Replaceable Milling Tip: MM080.315C120M03 T60M T60M, Carbide 2 Flutes, 0.126" Max Depth of Cut, Series Minimaster
