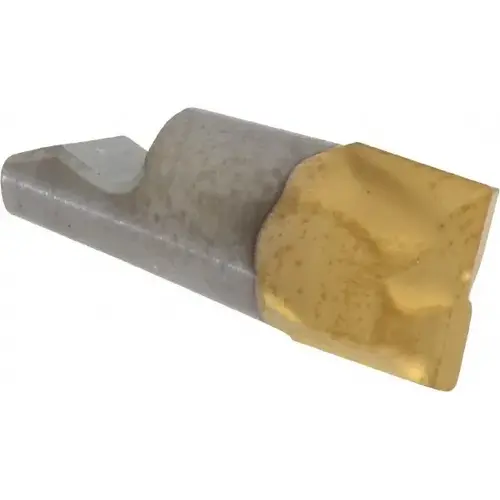

End Replaceable Milling Tip: MM100.375R1MD04 T60M T60M, Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 74034267 End Replaceable Milling Tip: MM100.375R1MD04 T60M T60M, Carbide TiAlN

Item #: 74034267 by Seco

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$118.04

/each
SAVE UP TO 11.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

0

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

MD04

Series

MM10

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0160

Length Of Cut (Decimal Inch - 4 Decimals)

0.2680in

Manufacturers Catalog Number

74034267

Material Grade

C5

Overall Length (Decimal Inch)

0.3340in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.3750in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.2680

Insert Hand

Right Hand

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM10

Maximum Depth of Cut (mm)

6.8

Milling Tip Type

Slotting

Manufacturer Grade

T60M

Functional Length (Decimal Inch)

0.3340

Functional Length (mm)

8.49

Milling Tip Full Description

MM10-0.375-R1-MD04

Extension From Holder (Inch)

0.3340

Product Overview
End Replaceable Milling Tip: MM100.375R1MD04 T60M T60M, Carbide 2 Flutes, 0.27" Max Depth of Cut, Series Minimaster
