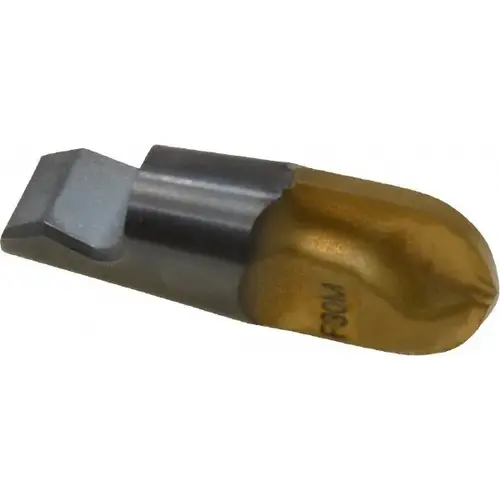

End Replaceable Milling Tip: MM120.472B90MD05 F30M F30M, Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 74068363 End Replaceable Milling Tip: MM120.472B90MD05 F30M F30M, Carbide TiAlN

Item #: 74068363 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
HURRY! Low in stock

$162.44

/each
SAVE UP TO 16.24
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

0

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

MD05

Series

MM12

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.2360

Length of Cut (Inch)

31/64in

Manufacturers Catalog Number

74068363

Material Grade

P20

Overall Length (Decimal Inch)

0.5560in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.4720in

Lead Angle

90

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.4720

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM12

Maximum Depth of Cut (mm)

12.3

Milling Tip Type

Profile

Manufacturer Grade

F30M

Functional Length (Decimal Inch)

0.5560

Functional Length (mm)

14.12

Milling Tip Full Description

MM12-0.472-B90-MD05

Extension From Holder (Inch)

0.5560

Product Overview
End Replaceable Milling Tip: MM120.472B90MD05 F30M F30M, Carbide 2 Flutes, 0.483" Max Depth of Cut, Series Minimaster
