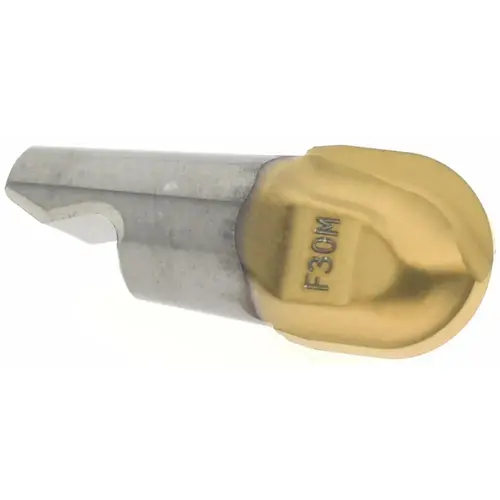

Ball Nose Replaceable Milling Tip: MM080.315B90PM03 F30M F30M, Carbide - pack of 2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 74068813-XCP2 Ball Nose Replaceable Milling Tip: MM080.315B90PM03 F30M F30M, Carbide - pack of 2

Item #: 74068813-XCP2 by Seco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$298.27

/package
SAVE UP TO 29.83
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.315

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.2720

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.3150

Chamfer Angle

0

Included Angle Degree

90

Milling Tip Style

MM08

Helix Angle

0

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

M03

Series

MM08

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.1570

Length Of Cut (Decimal Inch - 4 Decimals)

0.2720

Manufacturers Catalog Number

74068813

Material Grade

P20

Overall Length (Decimal Inch)

0.37

Maximum Depth of Cut (mm)

6.9

Milling Tip Type

Profile

Manufacturer Grade

F30M

Functional Length (Decimal Inch)

0.3700

Functional Length (mm)

9.39

Milling Tip Full Description

MM08-0.315-B90P-M03

Extension From Holder (Inch)

0.3700

Product Overview
Ball Nose Replaceable Milling Tip: MM080.315B90PM03 F30M F30M, Carbide 2 Flutes, 0.322" Max Depth of Cut, Series Minimaster
