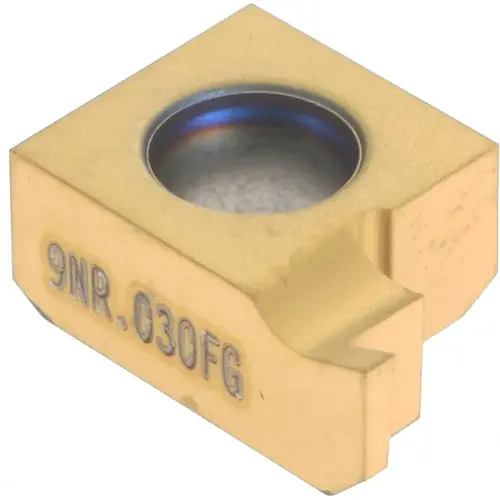

Grooving Insert: 9NR030FG CP500, Solid Carbide - pack of 2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 77950-XCP2 Grooving Insert: 9NR030FG CP500, Solid Carbide - pack of 2

Item #: 77950-XCP2 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$94.90

/package
SAVE UP TO 9.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Style

9NR .030FG

Overall Length (mm)

9.00

Standards

ISO

Insert Material

Solid Carbide

Series

Snap Tap

Coating Process

PVD

Coating/Finish

TiAlN

Material Grade

Micrograin

Overall Length (Decimal Inch)

0.3543

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.0300

Insert Holding Method

Clamp

Maximum Depth of Cut (Decimal Inch)

0.0300

Multi-use Tool

No

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2500

Full Radius

No

Chip Breaker

FG

Insert Style

9NR

Insert Size Code

9030

Inscribed Circle (Inch)

1/4

Manufacturer Grade

CP500

Maximum Depth Of Cut Range (Decimal Inch)

0.0000 to 0.0750

Insert Seat Size

9

Product Overview
Grooving Insert: 9NR030FG CP500, Solid Carbide TiAlN & TiN Finish, Right Hand, 0.03" Cutting Width, 0.03" Max Depth, Series Snap Tap
