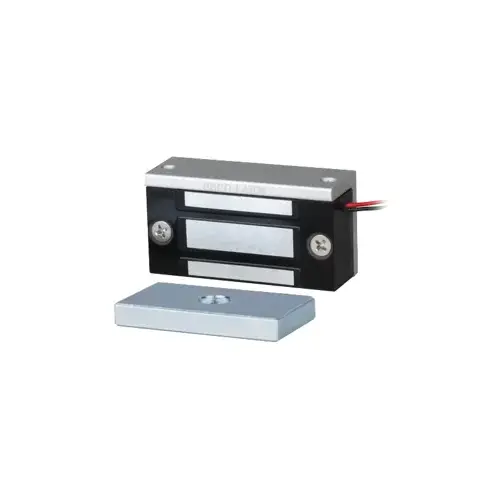

80lbs Single Mini Maglock 12/24VDC

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco-Larm E-941SA-80QClick To Copy 80lbs Single Mini Maglock 12/24VDC

Item #: E-941SA-80Q by SECO-LARM U.S.A., Inc

See reviewsSee reviews
In Stock

$68.97

/each
SAVE UP TO 6.90

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Product Type

Electromagnetic Lock

Alternate Part Number-1

172317

Voltage

24 VDC

Application

For Small, Low-Security Doors, Including Cabinets and Drawers

Warranty

LIFETIME LIMITED WARRANTY

Operating Temperature

14 to 131°F

Holding Force

80 at 12 VDC; 100 at 24 VDClb; lb

Product Height

2-3/4 Inch

Product Length

1-1/4 Inch

Armature Size

2-3/8" x 1-1/4" x 3/8"

ADA Compliant

No

Product Depth

13/16 Inch

Standards

CE Listed; RoHS Compliant

Function Family

Part/Component

For Door Type

Single Door

Features

No Residual Magnetism; Waterproof (IP67); Detachable Mounting Bracket for Easy Installation; MOV Surge Protection

Series

Parts/Accessories

Manufacturer Parent

Seco-Larm

Sub-Series

E-941SA-80Q

Product Overview
E-941SA-80Q80-lb Mini Electromagnetic Lock

The Seco-Larm E-941SA-80Q 80 Pound Miniature Electromagnetic Locks provide breadth of application depth of features and a proven record of performance. The electromagnetic locks are designed with the customer in mind to be robust easy to install and secure. When power is applied to the electromagnetic lock it turns on the unit's built-in electromagnet. This electromagnet is attracted to the steel armature plate which is mounted on a door holding the door fast against unauthorized entry.

Features:
  • For spaces where small size is required, including cabinets, drawers, etc.
  • Miniature size:
  • 2 3/4" x 1 1/4" x 3/4"
  • (70 x 31 x 19 mm)
  • Anodized aluminum housing (US 28)
  • Low current drain
  • 12~24 VDC operation
  • No residual magnetism
  • MOV surge protection
  • Complete mounting hardware for typical installations
Specifications: Holding force:
  • 12VDC - 80-lb (36kg)
  • 24VDC - 110-lb (51kg)
Operating voltage:
  • 12~24 VDC ± 10%
Current draw:
  • 12VDC - 85mA
  • 24VDC - 165mA
Operating temperature:
  • 14°~131° F
  • (-10°~55° C)
Weight:
  • 0.90-lb
  • (410g)
