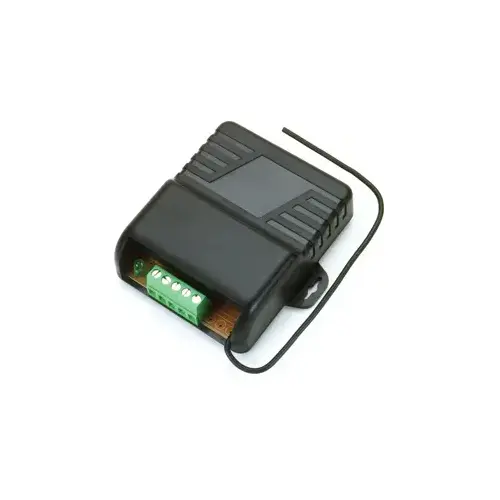

Seco-Larm SK-910RBQ 1-Channel RF Receiver

Size 3-1/4 x 2-3/4 x 1-1/8. High-impact ABS plastic Operating Distance Up to 500' Frequency 315MHz.
SK-910RBQ315MHz, 1 Channel RF Receivers

The SK-910RBQ and SK-910RB2Q are wireless receivers that meets the growing demand for receivers with multiple and independently controlled output functions. These RF receivers are compatible with both code hopping and fixed code transmitters. The receivers can be used to control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices remotely.

Features: Five programmable relay output modes:

• 4-Second momentary
• 1-Second momentary
• Toggle (ON/OFF)
• Validity
• Latch‡

• 11~24 VAC/VDC Operation

• Range: Up to 500ft (150m)*

• Controls garage doors, gates, house lights, alarm panels or other devices via remote

• LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode

• Pushbutton programming, no need to cut jumpers‡

• Up to 15 transmitter button codes can be learned

Specifications: Operating frequency:

• 315MHz

Memory capacity:

• 15 transmitter button codes per channel

Operating voltage:

• 11~24 VAC/VDC

Operating current:

• Standby - 8mA@12VDC
• Active - 30mA@12VDC per channel

Relay contact rating:

• Form C 10A@24VDC per channel

Connectors:

• Screw terminals, +,-, with NO/NC/COM per channel

Dimensions:

• 3 1/8" x 2 9/16" x 1"
• (80 x 65 x 25 mm)

Compatible Transmitters: Model:

• CODEBUMP™
• 68 Billion Codes

Pendant:

• SK-917T1-GBQ
• SK-917T2-GNQ
• SK-917T3-GNQ†
• SK-917T4-GNQ
• SK-919T1-GBQ
• SK-919T1-GBUQ
• SK-919T2-GNQ
• SK-919T3-GNQ
• SK-919T4-GNQ

Handheld:

• SK-919TP1H-BQ
• SK-919TP2H-NQ
• SK-919TP4H-NQ

• *Operating range will vary greatly depending on the installation and operating environment.

• †Special order item. Contact SECO-LARM for more details.

• ‡SK-910RBQ, SK-910RB2Q, and SK-910RB2-4Q only.
