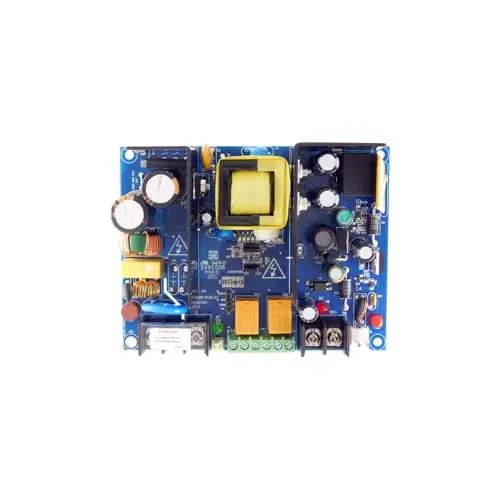

Securitron AQD2B Power Supply Board Only with 2 Amp; 12 / 24 Volt DC Dual Voltage
Item #: AQD2B by SECURITRON
Brand: Securitron
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Voltage
12/24 Volt
Product Type
Access Control Part/Accessory
Series
AQD Series
Alternate Part Number-1
159559
Operating Temperature
-4 to 122°F
Function
Power Supply
Product Dimensions
14" x 14" x 4-3/4"
Standards
UL294 Listed; UL603 Listed; ULC-S318 Listed; ULC-S533 Listed; RoHS Compliant; REACH Compliant; CE Compliant
Monitoring Option
Yes
Number of Outputs
1
Battery Type
Gel; AGM; Wet Lead Acid
Features
Field Selectable Continuous Output; 85% Efficiency; Tolerates Brownout or Overvoltage Input +/- 15% of Nominal Voltage; Thermal Shutdown Protection With Auto Restart; Circuit Breaker; Battery Charging Circuit; Low Battery Cutoff
Input Voltage
115/230VAC
Manufacturer Parent
Assa Abloy
Number of Relays
0
Power Supply Type
Switching
Rated Voltage
12/24VDC
Output Type
Dual Voltage
Enclosure Style
Board Only
Sub-Series
EAC_Boxed Power Supplies_securitron_8
Height
3.35
Length
8.66
Width
5.12
Fire Alarm Relay
No
Power
2 Amps
Electronic
Yes
Hazardous Material
No
Product Overview
SECURITRON AQD2 DUAL VOLTAGE 2 AMP SWITCHING POWER SUPPLY
The Securitron AQD2 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with an integrated battery charger. They provide 2 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
FEATURES & BENEFITS
- Available with a single relay fire trigger or individually triggered relayed outputs
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Tolerates brownout or overvoltage input 15% of nominal voltage
- Circuit breaker protects against overcurrent and reverse battery faults
- Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Thermal shutdown protection with auto restart
- Integrated battery charging circuit prevents overvoltage on locking devices
SPECIFICATIONS
Electrical- 12 VDC or 24 VDC field selectable output
- 115 VAC input
- Supports up to two (2) sealed gel, AGM or wet lead acid batteries
- Up to 90% efficiency
- Low voltage ripple design as low as 240 mV p-p
- Operating Temperature: -4 degree to 122 degree F (-20 degree to 50 degree C)
