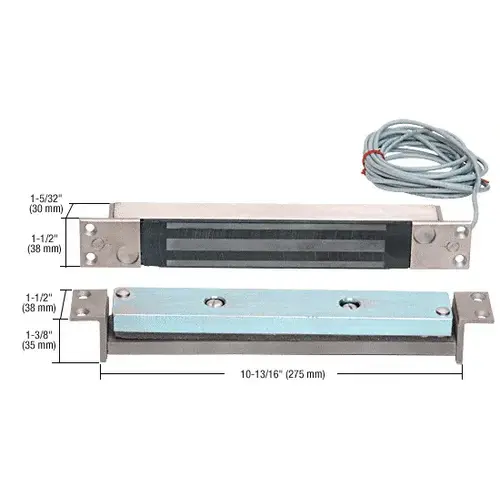

Electromagnetic Mortise Shear Aligning Magnalock

Roll over image to zoom in

Securitron SAM1224Click To Copy Electromagnetic Mortise Shear Aligning Magnalock

Item #: SAM1224 by SECURITRON

See reviewsSee reviews
In Stock

$1,474.88

/each
SAVE UP TO 147.49

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 37 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Fully Automatic 12/24V DC Selection
  • 1200 Pounds Shear Holding Force
  • MagnaCare Lifetime Replacement Warranty

Length

10-7/8" (276 mm)

Mag / Strike Height

1-1/8 in (29 mm) / 1-3/8 in (35 mm)

Width

1-1/2" (38 mm)

Mag/Strike Height

1-1/8" (29 mm)/1-3/8" (35 mm)

Brand

SECURITRON

Body Height

1 3/8

Body Width

1 1/2

Body Length

10 7/8

Current Draw

350mA @ 12V DC, 175mA @ 24V DC

Holding Force (Pounds)

1200

Input

12/24 Volts DC

Holding Force

1200

Product Overview

This Securitron Electromagnetic Mortise Shear Aligning Magnalock is designed for use with single and double metal doors and frames, or glass doors with top rails and metal frames. These compact size shear locks are mortised into the frame, and the strike is concealed into the door frame or rail. This totally concealed locking mechanism is ideal for swing-through and sliding doors, and provides superior security and appearance.
SPECIFICATIONS:
Holding Force: 1200 Lbs. (544 kg)
Input Voltage: 12/24 Volts DC
Current Draw: 350mA @ 12V DC, 175mA @ 24V DC
Product Warning:
This item requires a filtered, regulated 12 to 24 VDC power supply or filtered unregulated (using/transformer with rectifier) 12 to 16 VDC voltage selection is automatic.
