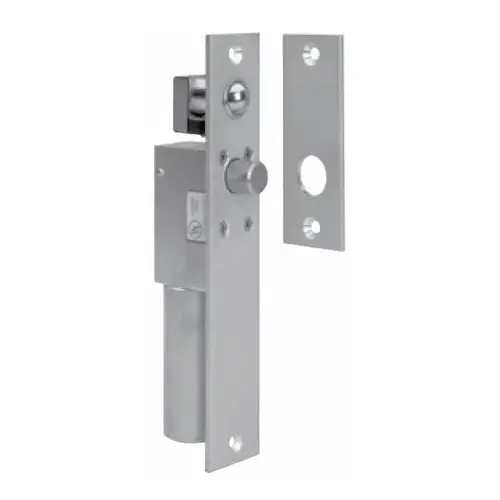

Security Door Controls 1091AIV Space Saver Electric Bolt Lock Fail Safe Aluminum
Item #: 1091AIV by Security Door Controls
Brand: Security Door Controls
See reviewsSee reviews
HURRY! Low in stock
$718.56
/eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
Finish: Aluminum
335 - Dull Black
605 - Bright Brass
606 - Dull Brass
613 - Oil Rubbed Bronze
625 - Bright Chrome
628 - Dull Aluminum
Aluminum
Dull Black
Model: Fail-Safe
DMR1 - Mechanical Release, Door Mount
DL - Deadlocking - Fail-Safe
DMR - Mechanical Release, Jamb Mount
Fail-Safe
WD - Wood Applications
Door Position Switch (DPS): No
No
Yes
Bolt Position Status (BPS): No
No
Yes
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Adams Rite Grade 1 Electric Strike 12 VDC 1-1/4 x 4-7/8 Square Fire Rated
- Sdc Space Saver Series Mortise Bolt 628 Aluminum Finish Fail Safe Electric Bolt 12/24 Vdc Door Prep Area 8in X 1-1/2in X 1-5/8 Deep.
- MFG# 1091AIV
Backset Size
2-3/4 in.
TAA/BAA Compliant
Yes
GSA Approved
No
Keying
Keyed
Commercial/Residential
Commercial
Handle Type
Non-Handed
UNSPSC
46171503
Timed Entry Allowed
30
ADA Compliant
No
AbilityOne
No
Door Handing
Universal/Reversible
Battery Voltage
12V
UL Listed
No
Package Quantity
1
Power Source
Magnetic
Finish
Aluminum
MADE IN THE USA
No
Fail Safe / Fail Secure
Field Selectable
Bolt Position Status (BPS)
No
Lock Type
Mortise
Voltage
12/24VDC
Model
Fail-Safe
Electronic
Yes
Door Position Switch (DPS)
No
Product Overview
SDC Spacesaver Right Angle Bolt Locks Concealed Mortise Electric Locking Innovation
The SDC Spacesaver Series of right angle bolt locks, including models like SDC 1091A and SDC 1190A, represents a patented breakthrough in electric locking technology. Designed and manufactured by SDC, these compact, concealed locks allow secure access control installations in virtually any standard door frame or lock stile through a simple mortise cutout making them ideal for both new construction and retrofit applications.
With their concealed installation, enhanced security, and clean architectural aesthetic, Spacesaver locks are trusted in commercial, industrial, and institutional facilities where durability and tamper resistance are paramount.
Key FeaturesRight angle bolt projection allows space-efficient concealed mortise installation.
Stainless steel bolt resists cutting and tampering.
Specification grade solenoids deliver superior durability and performance over commercial-grade alternatives.
Automatic relock ball switch:
Keeps bolt retracted when door is open.
Automatically projects the bolt when the door closes, securely locking it.
Field adjustable and bidirectional for use on both swinging and sliding doors.
Freely rotating bolt further enhances tamper resistance.
Field selectable dual voltage (12/24VDC).
Built-in voltage and current spike protection.
Includes power regulator for stable performance.
Mounting tabs included for simplified installation.
1091AIDMR and 1291AHDMR models feature a mechanical release mortise cylinder override, allowing manual unlocking in the event of a power failure or system malfunction.
Note: Key cylinders sold separately.
Ideal for narrow-profile aluminum doors, hollow metal frames, or glass storefronts.
Perfect for security entrances, sliding door locks, and retrofits requiring clean concealed hardware.
CERTIFICATIONS
UL 10C Positive Pressure Fire Tests of Door Assemblies
ULC-S104 Standard Method for Fire Tests of Door Assemblies
ULC-S533 Egress Door Securing and Releasing Devices
