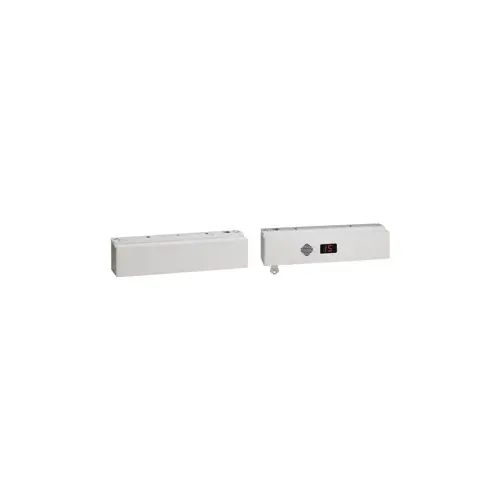

1650lb EMLock Tandem Door Delayed Egress Electromagnetic Lock, NFPA 101, Fixed 15 Second Egress Delay, Keyswitch Reset, Visual and Verbal Countdown and Alarm Tone, 12/24VDC, UL Listed, Grade 1, Satin Aluminum 628

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Security Door Controls 1511TNDV 1650lb EMLock Tandem Door Delayed Egress Electromagnetic Lock, NFPA 101, Fixed 15 Second Egress Delay, Keyswitch Reset, Visual and Verbal Countdown and Alarm Tone, 12/24VDC, UL Listed, Grade 1, Satin Aluminum 628

Item #: 1511TNDV by Security Door Controls

See reviews See reviews

$1,746.75 /each

SAVE UP TO 174.68

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

141915

Voltage

12V DC, 24V DC

Options

15 Second Exit Delay, SDC, Siren

Holding Force

1650 lbs

Finish code

628

Mounting

Surface Mount

Maglock Type

Double Door

SDC 1511 S/T Series Integrated Delayed Egress Locks

The SDC Exit Check is compatible with patient tracking systems, like those used for protection against infant abduction from hospital nurseries, and for the protection of patients in long term care facilities who may be endangered if they leave their care facility without supervision.

Typically used on exit doors, when unauthorized egress is initiated when in the locked mode, the SDC Exit Check delays egress through the door for 15 or 30 seconds. Meanwhile, the person exiting must wait while personnel or security respond. The door unlocks after 15 seconds have elapsed, permitting egress. A signal from the fire life safety system will release the lock for uninhibited egress in an emergency. 30 second delay available where approved.

Access controls may be utilized for authorized egress, access and lock reset. Access from the exterior of latching doors requires an additional means of mechanical lock release, such as a mechanical key or electric strike.

SERIES MODELS

  • 1511S
    SDC Exit Check Delayed Egress Lock, Integrated, Surface Mount, Single, 1650lbs, Voice, Tone, and Digital Annunciator

    1511T
    SDC Exit Check Delayed Egress Lock, Integrated, Surface Mount, Tandem, 1650lbs, Verbal & Digital Annunciator

    • SPECIAL FEATURES

  • 1650lbs Holding Force
  • Emergency Release Input
  • Activation by door movement or exit bar
  • Locked & Egress Mode monitoring outputs
  • Adj. Timed bypass 1 - 30 sec.
  • Key reset, sustained bypass & timed bypass
  • UBC & Califorinia compliant manual power up
  • Auotsensing 12/24VDC Voltage Input
  • Choice of 9 anodized & plated finishes
  • ANSI / BHMA Grade 1 Compliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed

    • DELAYED EGRESS OPERATION

  • NA: NFPA 101, IBC and IFC Compliant. Field selectable: 15 or 30 second exit delay; 1 or 2 second nuisance delay. Field selectable automatic or manual power-up after emergency release.

  • NC: IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant. Fixed 15 exit delay, 0/1 second nuisance delay Calif. Building Code OSHPD/Manual Power Up.

  • ND: IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant. Fixed 15 exit delay, 0/1 second nuisance delay.

  • BC: BOCA National Building Code and Chicago Building Compliant. 15 second fixed exit delay, 0 second nuisance delay, auto reset 30 seconds after door closure.

  • BD: BOCA National Building Code. 15 second fixed exit delay, 0/1 second nuisance delay, auto reset 30 seconds after door closure.

    • FINISHES

  • Anodized Finishes
    • V - 628 Aluminum (standard)
    • Y - 335 Black Anodized
  • Powder Coat Finishes
    • X - Dark Bronze Powder Coat Painted
    • C - Brass Powder Coat Painted
  • Plated Finishes
    • P - 625 Bright Chrome
    • Q - 626 Dull Chrome
