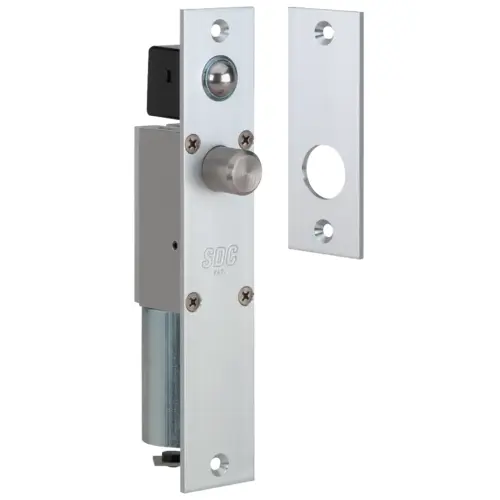

Security Door Controls 2090AHU Electric Bolt Lock, Heavy Duty Right Angle, Fail-Secure, 24VDC, 630/US32D Stainless Steel
Item #: 2090AHU by SDC
Brand: Security Door Controls
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Alternate Part Number-1
206297
Voltage
24VDC
Electronic
Yes
Lock Type
Mortise
Fail Safe / Fail Secure
Fail-Secure
Bolt Position Status (BPS)
No
Door Position Switch (DPS)
No
Product Overview
Designed and patented by SDC, Spacesaver right angle bolt locks represent a fundamental innovation in electric locking technology for access control applications. Spacesaver bolts project at right angles to the lock mechanism, allowing installation of Spacesaver locks, by means of a simple mortise cutout, in virtually any standard frame, or in most door lock stiles. With the entire lock concealed, aesthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical.
All Spacesaver locks are equipped with stainless steel bolts, specification grade solenoids and automatic relock ball switches. Bolts rotate freely, making attempts to tamper or cut extremely difficult. Specification grade solenoids facilitate superior overall performance in both force and longevity, when compared to commercial grade solenoids. Automatic relock ball switches keep the bolt retracted while the door is open. The door depresses the ball switch on closure, causing the bolt to project automatically, locking the door. Additionally, ball switches are field adjustable to compensate for wide door gap and bidirectional to permit use on swinging and sliding doors.
1091AIDMR and 1291AHDMR models incorporate a mechanical release mortise cylinder to manually override the solenoid. Key cylinders sold separately, see related products.
STANDARD FEATURES
Concealed mortise right angle design
Stainless steel bolt
Specification grade solenoid
Automatic relock
Field adjustable and bidirectional automatic
relock ball switch
Mounting tabs included
Field selectable dual voltage
Voltage and current spike protection
Power regulator included
CERTIFICATIONS
UL 10C Positive Pressure Fire Tests of Door Assemblies
ULC-S104 Standard Method for Fire Tests of Door Assemblies
ULC-S533 Egress Door Securing and Releasing Devices
