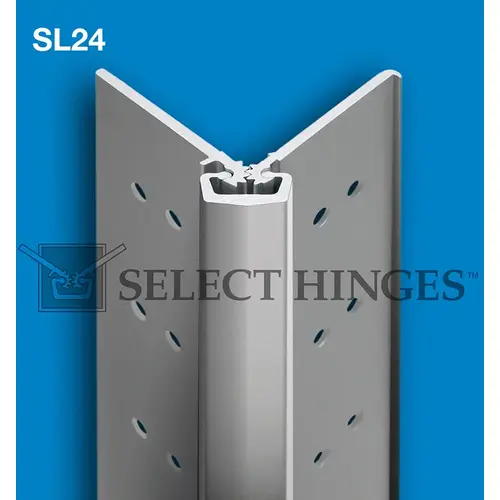

Select Hinges SL24-95-BR-SD SL24 Concealed Geared Continuous Hinge Dark Bronze

Hinge failure is the most common cause of entrance failure. The Select Continuous Geared Hinge is a revolutionary development that puts an end to the costly and irritation problems associated with hinge failure. Extruded 6063 T6 Aluminum alloy w/ polyester thrust bearings. Load/Frequency Ratings For 1-3/4 doors. 48 max. door width in 16 gauge hollow metal (min.) or 1/8 aluminum (min.). Standard Duty "“ Tested per BHMA standards for medium-frequency doors up to 200 lb. without frame or door reinforcement. SELECT SL24 geared continuous hinges are listed and tested by Underwriters Laboratories to meet the Positive and Negative pressure requirements of UL10B and UL10C and are in accordance with UBC 7.2 (1997). SELECT SL24 geared continuous hinges are for use on swinging single fire doors (max. door opening of 4'x10') or pairs of fire doors (max. door opening of 8'x10') including double egress installed in masonry or drywall. SELECT SL24 geared continuous hinges are rated for up to 1-1/2 hours for wood composite and wood core type fire doors. A special patented process can be added to increase the fire rating to 3 hours (NO FIRE PINS OR STUDS REQUIRED) for hollow metal or steel covered composite type doors.
