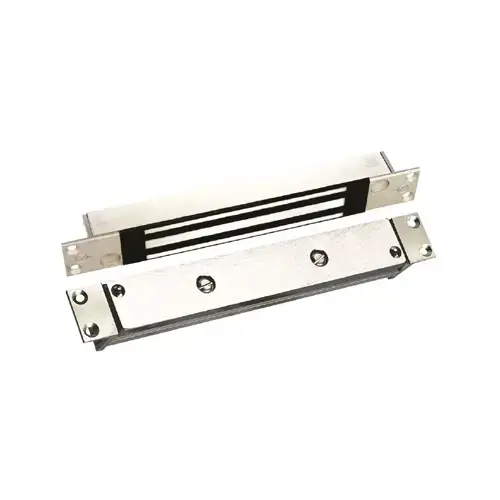

Securitron SAMBD SAM 1200lbs Shear Aligning Magnalock, Satin Stainless Steel
Item #: SAMBD by SECURITRON
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
- World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
- Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
- Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Satin Stainless Steel
Color Code
630/US32D
Fire Rated
Yes
Origin
USA
BAA Qualified
Yes
Product Type
Electromagnetic Lock
Warranty
Lifetime Warranty
Aluminium Bottle Contents
Swinging
ProductType
Manual
Voltage
24 VDC
Mounting Type
Direct Mount
Grade
ANSI/BHMA Grade 2
Application
Concealed into Wood, Steel, Aluminum or Latching
Operating Temperature
-40 to 140°F
Function
Magnetic Lock
Holding Force
1200lb
Product Height
1-1/2 Inch
Product Length
10-7/8 Inch
ADA Compliant
No
Included Components
Mounting Brackets
Strike Size
10-7/8" L x 1-7/16" D x 1-1/2" H
Product Depth
1.188 Inch
Standards
UL 10C Listed; CAN4-S104, CAN/ ULC-S533 Listed; ANSI/UL 294 Listed; ANSI/BHMA A156.23, Grade 2; E08561-1000, E08571-1000, E08581-1000, E08591-1000; CSFM - California State Fire Marshal Approved; CE:EN 50081-1(92), EN 61000-6-2(99) Approved
Indoor or Outdoor Use
Indoor/Outdoor
Monitoring Option
BondStat Monitor; Door Position Switch
Features
Automatic Dual Voltage; Patented Instant Release Circuit; Mounted Using Steel Machine Screws; All Ferrous Metal Surfaces Plated to MIL Specification; Fully Sealed Electronics
Series
Parts/Accessories
Manufacturer Parent
Assa Abloy
Resistance Properties
Tamper and Weather Resistant
Conductor Length
10 Feet
Preload Capable
Yes
Sub-Series
SAMBD
Dimension
1-1/2" x 10-7/8" x 1-3/16"
Use With
Push Button, Reader, or Sensor
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Warranty
Operating Voltage
Dual Voltage 12/24 VDC
UL Listing Type
UL10C and UL294
Magnet Size
1-1/2" x 10-7/8" x 1-3/16"
Power Supply
Wired
Hazardous Material
No
No of inners
1
Product Overview
SAM: Shear Aligning Magnalock - 1,200 lbs holding force shear aligning Magnalock
Hidden strength at any angle for any application This concealed Magnalock is ideal for traffic control or medium security and with its flexible mounting options solutions the most challenging door control situations. The SAM Shear Aligning Magnalock has mounting options for a single door or each leaf on a pair of doors and can be on a sliding, in-swing, out-swing or swing-through door. It mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.
Product Features
Dimensions
Certifications
Hidden strength at any angle for any application This concealed Magnalock is ideal for traffic control or medium security and with its flexible mounting options solutions the most challenging door control situations. The SAM Shear Aligning Magnalock has mounting options for a single door or each leaf on a pair of doors and can be on a sliding, in-swing, out-swing or swing-through door. It mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.
Product Features
- Efficient low power usuage
- Automatic dual voltage - no field adjustment required
- Fully sealed for weatherproof operations
- Rust resistant—all ferrous metal surfaces plated for durability
- Instant release circuit— no residual magnetism
- Noise suppression with included MOV
- Recessed for aesthetically appealing finish
- 10 ft [3.05m] of jacketed, stranded conductor cable
- Direct mount in door frame for strength and reliability
- MagnaCare lifetime replacement, No Fault Warranty
Dimensions
- Magnalock: 10-7/8"L x 1-3/16"D x 1-1/2"H
- Strike: 10-7/8"L x 1-7/16"D x 1-1/2"H
Certifications
- UL 10C Listed
- CAN4-S104, CAN/ ULC-S533 Listed
- ANSI/UL 294 Listed
- ANSI/BHM 156.23, Grade 2; E08561-1000, E08571-1000, E08581-1000, E08591-1000
- CSFM—California State Fire Marshal approved
- CE:EN 50081-1(92), EN 61000-6-2(99) approved
