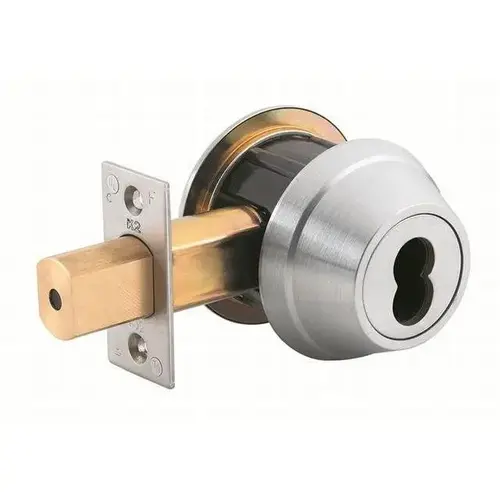

Stanley Commercial Hardware QDB281-626Click To Copy SFIC Deadbolt - Single Cylinder with 2-3/4" Backset and Square Deadbolt Strike Satin Chrome Finish

QDB200 series Grade 2 deadbolts have more built-in features for attack resistance. In addition to quality materials and construction, we added components to combat saw, drill, and wrench attacks. When you re choosing a deadbolt for light commercial applications, choose the name more people trust for their security

Features

• SmartKey flexibility

  • An available re-key system to permit re-keying the lock without having to change or remove the product from the door, and an available key control function make the QDB200 series more versatile and convenient for use and maintenance
• Greater security

  • Constructed with a full 1" steel throw bolt and hardened steel roller pin, two ball bearings, and free-spinning cylinder collar, QDB200 series deadbolts resist saw, drill, and wrench attacks.
• Backed by leading warranties

  • The QDB200 series comes with lifetime mechanical and three-year finish warranties.
• Easy to retrofit

  • Choose deadbolts with a SFIC option or keep your existing small format cores and use them with QDB200 series products. Standard door preparation makes retrofit quick and easy.
• Flexible installation

  • Compartmentalized packaging makes QDB200 deadbolts easierto install, and an adjustable backset deadbolt latch gives you greater flexibility at the point of installation.
• Additional security features

  • Depending on your application, available options like hurricane compliance can add an additional layer of reliability and security.
• Short lead time
  • Our QDB200 series deadbolts are available for immediate shipment.

Certifications:

• ANSI/BHMA A156.12 Series (1999) Grade 2
• ANSI A117.1 Accessibility Code (ADA compliant)
• UL/cUL listed (3 hour) for A" label single door applications (4 by 8 ) UL10C/UBC 7-2 (1997) positive pressure rated
• UL10B pressure rated
• Hurricane Compliant Miami DADA N.O.A.
• ADA compliant thumb turn

Product Specifications:

• Exposed trim: stainless steel with iron forged cylinder guard
• Door range: 1 3/8" (35mm) 2" (51mm); service part 8Q00082 spacer rings required for 1 3/8" doors
• Backset: 2 3/4" (70mm) square standard; 2 3/8" (60mm) available
• Strike: standard deadbolt strike 1 1/8" (32mm) x 2 3/4" (70mm); other options available Door prep: 2 1/8" (54mm) diameter cross bore
• Latch bolt: full 1"(25.4mm) throw with hardened steel roller
• Latch faceplate: 1 1/8" (29mm) x 2 1/4" (57mm) standard; 1" (25.4mm) x 2 1/4"
• (57mm) available

• Available with indicator that clearly identifies whether the door is locked or unlocked from the exterior.
• Can be found in applications such as rest stop and state park bathrooms as well as storage rooms as well as multiple uses in commercial office spaces, residential applications. The deadbolt is commonly used in conjunction with cylindrical locks to provide an extra level of security.

Functions:

• Bright Brass
• Oil Rubbed Bronze
• Satin Nickel
• Bright Chrome
• Satin Chrome
