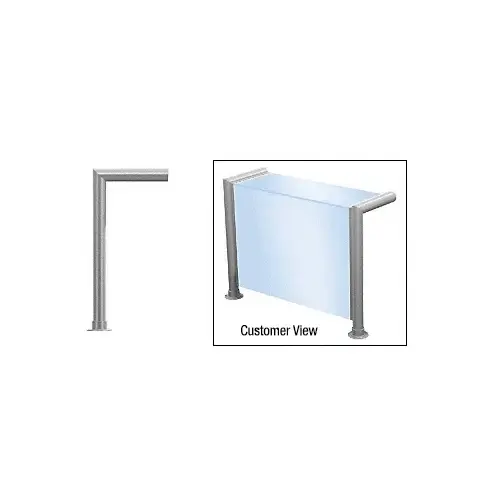

CRL SG5950CBS Elegant Series Center Post Sneeze Guard for 3/8" (10 mm) Glass, 18" High, 12" Shelf, 1-1/2" Diameter, 2" Air Gap
Item #: SG5950CBS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 18" (457 mm)High with 12" (305 mm) Top Shelf
- U-Channel for 3/8" (10 mm) Glass, 2" (50.8 mm) Air Gap at Bottom
- Three Standard Configurations – Center, Open Left End, Open Right End
- Brushed #4 Finish, Full Flange Base
- Ready to Install, Stocked in Los Angeles
Brushed Stainless Steel
1-1/2" (38.1 mm)
3/8" (10 mm)
12" (305 mm)
Center W/Top Shelf
Brushed Stainless Steel
Shelf Support Length (Inches)
Center Post With Shelf Support
CRL Elegant Series Sneeze Guards for 3/8" (10 mm) glass are constructed with 1-1/2" (38 mm) Diameter Stainless Steel Tubing. Glass can be attached to the u-channels with Cat. No. 33SC Clear Silicone, which meets CRL Standards.
These sneeze guard posts can be installed in wood, marble or vitreous counter tops using the Full Flange Base and the supplied screws. Each kit contains one Sneeze Guard, one Full Flange Base, one End Cap, Glazing U-Channel with 2" (50.08 mm) air gap at the bottom, and Installation Screws. Glass is not provided. Handing (L/R) from customer side view.
CRL fabricates Custom Sneeze Guards for non-stock sizes and configurations. For do-it-yourselfers, we offer stock component parts ready-to-ship so you can fabricate complete units in your own shop.
Different size standard Elegant Series Sneeze Guards for 1/4"(6 mm) glass are also available. You can select from three finishes. See catalog numbers SG900BS/PS/PB, SG925BS/PS/PB, and SG950BS/PS/PB for more details.
For interior use only. Maximum recommended span for 3/8" (10 mm) glass is 56" wide. For shelves expected to bear weight, a 42" maximum span is recommended. Use tempered glass only. Handing (L/R) is from customer side view.
