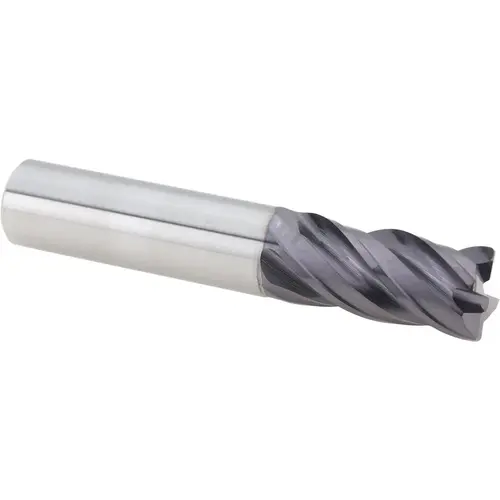

Corner Radius End Mill: 5/8" Dia, 1-1/4" LOC, 0.0400" Radius, 4 Flute, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

SGS 36861 Corner Radius End Mill: 5/8" Dia, 1-1/4" LOC, 0.0400" Radius, 4 Flute, Solid Carbide

Item #: 36861 by SGS

See reviewsSee reviews
See reviews summary
In Stock

$287.07

/each
SAVE UP TO 28.71
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 42 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

End Mill Toolholders

Flute Type

Spiral

Material Application

Steel

Shank Type

Straight-Cylindrical

End Type

Corner Radius

Number of Flutes

4

Pitch

Normal

Chipbreaker

No

Length Type

Short

Cutting Direction

Right Hand

Series

ZPCR

Variable Helix

Yes

Coating/Finish

TX

Coolant Through

No

Corner Radius (Decimal Inch)

0.0400

Length Of Cut (Decimal Inch - 4 Decimals)

1.2500

Length of Cut (Inch)

1-1/4

Material Grade

Micrograin

Overall Length (Decimal Inch)

3.5

Overall Length (Inch)

3-1/2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.6250

Shank Diameter (Inch)

5/8

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

No

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.6250

Mill Diameter (Inch)

5/8

Secondary Workpiece Material

Hard Material

Single Or Double End

Single

Variable Index

Yes

Secondary Workpiece Material Code

H

Mill Diameter Tolerance

-0.0020/0.0000 in

Shank Diameter Tolerance

h6

Corner Radius Tolerance

+0.00000 to -0.00200 in

Product Overview
Corner Radius End Mill: 5/8" Dia, 1-1/4" LOC, 0.0400" Radius, 4 Flute, Solid Carbide 3-1/2" OAL, 5/8" Shank Dia, 35;38 deg Helix, TX Coated, Single End, Series ZPCR
