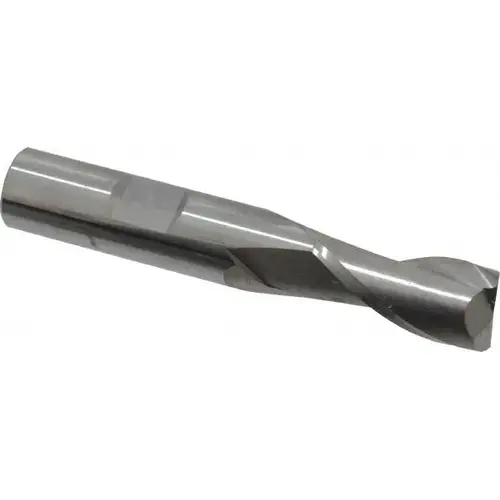

SGS 38259 Corner Radius End Mill: 1/2" Dia, 1" LOC, 0.015" Radius, 2 Flutes, Solid Carbide Uncoated
Item #: 38259 by SGS
UPC #: 091781738287
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
For Use With
End Mill Holders
Flute Type
Helical
Material Application
Steel
Shank Type
Weldon Flat
End Type
Corner Radius
Number of Flutes
2
Pitch
Coarse
Chipbreaker
No
Length Type
Short
Cutting Direction
Right Hand
Series
03C
Variable Helix
No
Coating/Finish
Uncoated
Coolant Through
No
Corner Radius (Decimal Inch)
0.0150
Length Of Cut (Decimal Inch - 4 Decimals)
0.5000
Length of Cut (Inch)
1
Material Grade
Micrograin
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.5000
Shank Diameter (Inch)
1/2
UNSPSC Code
27112803
Vendor Drop Ship
N
Centercutting
No
Coating Classification
Uncoated
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Helix Style
Medium
Material Removal Type
Roughing
Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Secondary Workpiece Material
Hard Material
Single Or Double End
Single
Variable Index
No
Secondary Workpiece Material Code
H
Mill Diameter Tolerance
-0.0020 to -0.0010 in
Shank Diameter Tolerance
h6
Corner Radius Tolerance
-0.0020 to 0.0000 in
Proprietary Coating Designation
Uncoated
Product Overview
Corner Radius End Mill: 1/2" Dia, 1" LOC, 0.015" Radius, 2 Flutes, Solid Carbide 3" OAL, 1/2" Shank Dia, 30 degree Helix, Bright/Uncoated, Single End, Centercutting, Series 3CR
