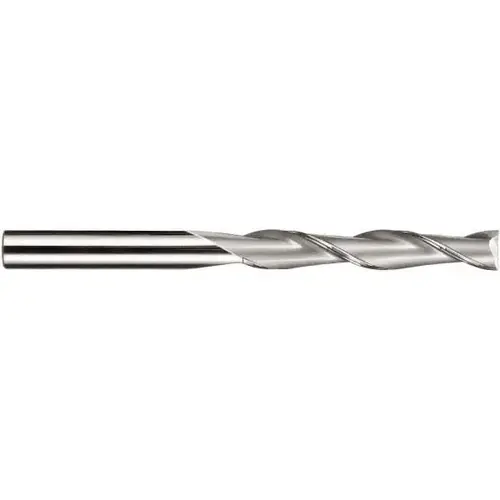

Square End Mill: 0.1181" Dia, 0.9843" LOC, 0.1181" Shank Dia, 2 Flutes, Solid Carbide Titanium Nitride

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

SGS 49427 Square End Mill: 0.1181" Dia, 0.9843" LOC, 0.1181" Shank Dia, 2 Flutes, Solid Carbide Titanium Nitride

Item #: 49427 by SGS

See reviewsSee reviews
See reviews summary

$49.58

/each
SAVE UP TO 4.96
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

75

Helix Angle

30

Number of Flutes

2

Chipbreaker

No

Length Type

Extra Long

Cutting Direction

Right Hand

Series

3XLM

Variable Helix

No

Coating/Finish

Titanium Nitride

Length of Cut (Decimal Inch)

0.9843

Material Grade

Micrograin

Primary Workpiece Material Code

H

Shank Diameter (Decimal Inch)

0.1181

Shank Diameter (mm)

3.00

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

Yes

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Mill Diameter (Decimal Inch)

0.1181

Variable Index

No

Length of Cut (mm)

25

Mill Diameter Tolerance

+0.000/-0.050 mm

Length Of Cut Range (Decimal Inch)

0.8000 - 1.0000

Mill Diameter (mm)

3

Shank Diameter Tolerance

+0.000/-0.006 mm

Product Overview
Square End Mill: 0.1181" Dia, 0.9843" LOC, 0.1181" Shank Dia, 2 Flutes, Solid Carbide Single End, Right Hand Flute, Spiral Flute, 30 ° Helix, Right Hand Cut, Series 3XLM
