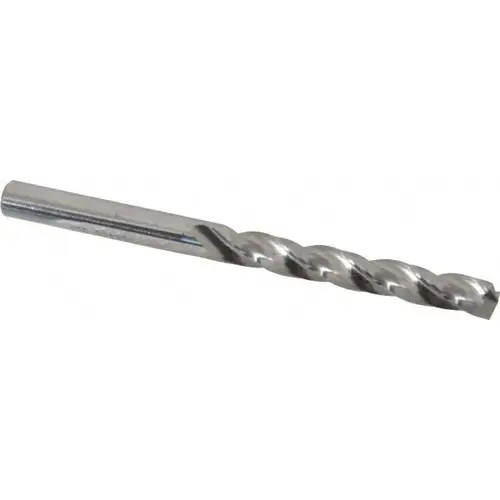

SGS 53117 Jobber Length Drill Bit: 17/64" Dia, 150 degree, Solid Carbide Uncoated

Item #: 53117 by SGS

Brand: SGS

See reviewsSee reviews
See reviews summary
In Stock

$117.07

/each
SAVE UP TO 11.71
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Number of Flutes

3

Standards

DIN 6539

Cutting Direction

Right Hand

Series

103

Point Type

Standard

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Coating/Finish

Uncoated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.2656

Drill Bit Size (Inch)

17/64

Drill Bit Size (mm)

6.75

Drill Bit Size Range (Decimal Inch)

0.2500 - 0.3000

Drill Point Angle

150 degrees

Flute By Diameter Ratio

5xD

Flute Length (Inch)

2-1/8

Material Grade

Micrograin

Maximum Drilling Depth (Decimal Inch)

1.7000

Overall Length (Inch)

3-1/2

Primary Workpiece Material

Cast Iron

Shank Diameter (Decimal Inch)

0.2656

Shank Length (Decimal Inch)

1.4950

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0005 to 0.0000 in

Drill Bit Finish/Coating

Bright/Uncoated

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 17/64" Dia, 150 degree, Solid Carbide Bright Coated, 3-1/2" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 103
