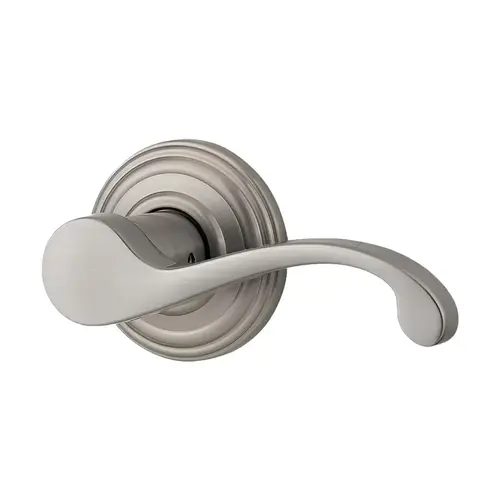

Kwikset 788CHLRH-15A Commonwealth Half Dummy Lever, Satin Nickel Blackened

Commonwealth LeverSignature Series

Great hardware can transform the look of your home. With a variety of styles functions and finishes, Kwikset's levers are sure to define your decor from the moment someone walks into your home.

Specifications: Door Prep:

• Cross Bore 2-1/8"
• Edge Bore 1"
• Edge Bore 1"

Backset:

• Adjustable 2-3/8" or 2-3/4"

Door Thickness:

• 1-3/8" – 1-3/4" doors standard
• 2-1/4" doors optional on 720 and 740 models

Cylinder:

• SmartKey Security or Pin & Tumbler

Rose:

• Specify round or square rose - HFL, LSL, MRL, SYL, MIL, VDL

Faceplate:

• 1" x 2-1/4"
• Specify round corner, square corner or drive-in

Strikes:

• 2-1/4" full lip. Specificy round corner or square corner
• Other options available

Bolt:

• 1/2" throw

Door Handing:

• Specify handing only with inactive levers

ANSI/BHMA:

• Grade 2 Certified

ADA:

• Families of MRL, SYL, LSL, MIL, HFL in Functions Passage, Privacy and Entry are in compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA).

UL:

• Meets UL 3 hour fire rating for 725, 735, 745, 746, 749, 755
• Optional UL* 1/3 hour fire rating for all functions

Functions: Privacy/Bed/Bath:

• Both levers locked or unlocked by turn button inside. Outside lever unlocked by emergency key.

Passage/Hall/Closet:

• Both levers always free.

Keyed Entry Lever:

• Both levers locked or unlocked by key outside or turn or push button inside.

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.

Finishes:

• Satin Nickel

• Antique Brass

• Venetian Bronze

• Antique Nickel

• Satin Chrome

• Polished Brass

• Matte Black
