Mechanical Pushbutton Cylindrical Lock with 2-3/4" Backset, Kaba Schlage C Cylinder and Winston Lever Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

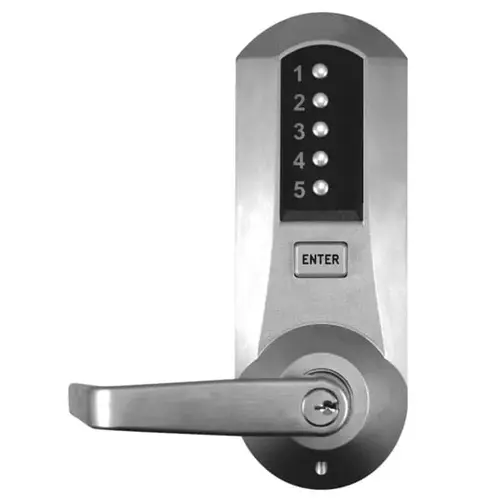

Simplex 5021XSWL26D Mechanical Pushbutton Cylindrical Lock with 2-3/4" Backset, Kaba Schlage C Cylinder and Winston Lever Satin Chrome Finish

Item #: 5021XSWL26D by Simplex

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$670.38

/each
SAVE UP TO 67.04
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 125 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
  • Single Access Code—One Easy-to-Manage Code for All Users
  • Lock is Easily Programmed Via Keypad Without Removing Lock From the Door
  • Vandal Resistant, Solid Metal Pushbuttons
  • Extra Heavy-Duty, Solid Cast Housings, Solid Cast; ADA-Compliant Levers, and Wear Tested for Extensive Use in Indoor and Outdoor Applications

Finish

Satin Chrome

Function

Entrance/Office Lock

Series

Simplex 5000

Design

Winston Lever

Strike

ASA Strike

Backset

2-3/4" Backset

UL Listed

Yes

Product Class

Commercial

BHMA Certification

Grade 1

ADA

Yes

Cross Bore

2-1/8"

Manufacturer Warranty

3 Year Limited

ANSI Certification

A156.2

Remote Access

No

Smartphone Enabled

No

input type

Keypad

Handing

Left Hand Reverse

Number of Codes

1

Handle Width

3.375

Door Thickness

1-1/2", 1-3/4", 1-3/8", 1-7/8", 2-1/4", 2-1/8"

Handle Design

Winston

Dimension

3-3/8" x 8-7/8"; 3-13/16" Projection

Material

Cast Zinc

Keyway

Schlage C Keyway

UL Listing Type

3-Hour UL/ULC Fire Rating for "A" Labeled Doors

Door Range

1-3/4" to 2-1/4"

Hazardous Material

No

Strike Dimension

1-1/4" x 4-7/8"

Cross Bore Size

2-1/8" Bore

Finish code

26D

Latch Faceplate Dimension

1-1/8" x 2-1/4"

Lever Knob Design

Winston Lever

No of inners

1

No Of Pins

5 Pin Cylinder

Product Overview
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
