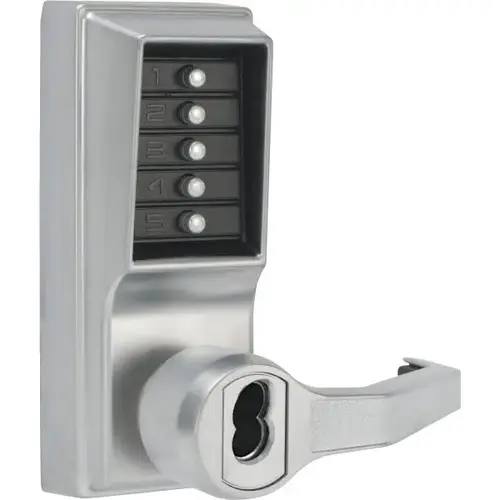

Simplex Access Controls LR1021M-26D-41Click To Copy Kaba Keypad Entry Mechanical Lock Rh Med Ic Core Satin Chrome

Kaba Simplex L1000 Series Summary

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

Kaba L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Product Details

Locking Device:Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors

Number of Codes:Single access code one easy-to-manage code for all users

Programming:Lock is easily programmed via keypad without removing lock from the door

Handing:Factory-handed; not field reversible

Key Override (Optional):

• Interchangeable Cores: Small format Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included

Operation Modes:

• Pushbutton Access
• Passage (select models) allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• Privacy (select models) disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.

Economical:A cost effective access control solution

Technical Details

Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers

Door Preparation:Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness: 1-3/8" (35 mm) to 2-1/4" (57 mm) Pre-assembled to accommodate 15/8" (41 mm) to 2" (51 mm) doors

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Handing: Factory-handed; not field reversible

Backset:2-3/4" (70 mm), 2-3/8" (60 mm)

Latch: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)

Minimum Stile Recommended: 5" (127 mm)

Strike: Standard strike plate; ASA strike plate

Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers

Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant

Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors

Warranty: 3-year warranty

Standard Finishes:

• Satin Chrome 26D (626)
• Antique Brass 05 (609)

Optional Finishes:

• Bright Brass 03 (605)
• Bright Chrome 026 (625)
