Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- FishReveal Smart Target Viewing: A massive leap forward in fish-finding technology, FishReveal makes it easier to see fish on DownScan Imaging . Unlike traditional CHIRP views that provide strong fish targets, but lack refined structure detail, or DownScan Imaging that provides photo-like images of the bottom and structure details but shows fish targets as tiny dots -- FishReveal Smart Target Vie
- Enhanced Sonar Imaging: Exclusive to NSS evo3 displays, Enhanced Sonar Imaging delivers industry-leading clarity and range, with near-photographic images to each side and below your boat. By making full use of the dynamic color spectrum, SideScan, DownScan Imaging and StructureScan 3D can now produce richer images with greatly enhanced detail and better contrast. Just as the human eye compensates
- C-MAP Navigation Palette: C-MAP charts just got a major upgrade in readability that is most apparent near shore, where colors used for land, docks, anchorage areas, water, and channels are nicely differentiated and water contour lines are distinct. The new palette makes it easier to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land. The color scheme
- Automatic Routing: Get faster and easier navigation with automatic route planning. This feature simplifies route creation by automatically plotting the shortest and safest course based on the boat's draft, beam and height; creating a route around a landmass, shoals and other fixed navigational hazards. Autorouting requires a C-MAP MAX-N+, Navionics+ or Navionics Platinum chart.
- MotorGuide Xi5 Trolling Motor Control: Control the Xi5 trolling motor* from the touchscreen of your Simrad display, making it easy to maintain your current position or navigate to a new one without leaving the helm. Navigation options include navigating to cursor, a heading, waypoint, along with a route, or pre-defined turn pattern.
- Widescreen SolarMAX HD Display: SolarMAX HD display technology revolutionizes the way you see your onboard electronics, with high-definition visuals and clear visibility no matter what the conditions. See clearly from any position, sitting or standing, with extra-wide viewing angles. Bright LED backlighting and an anti-reflective coating offer enhanced daytime visibility; SolarMAX HD displays a
- Radar System Control: Expand your view with Halo Pulse Compression radar, Broadband Radar or HD Digital Radar. NSS evo3 displays integrate with these network-connected Simrad radars to provide a full-featured radar interface complete with easy preset modes, custom manual tuning, MARPA target tracking, guard zones, overlay views, and many other features depending on your choice of radar system.
- Simrad Autopilot Integration: Take complete control of your Simrad autopilot with the NSS evo3 touchscreen or keypad. Set a heading, maintain your current course against wind and tide, steer to a waypoint, or follow a complex route with simple on-screen controls. NSS evo3 displays can serve as the sole controller for a black box" autopilot system, or can be combined with dedicated autopilot contr
- Built-in 10 Hz GPS Receiver: All NSS evo3 displays include an integrated high-gain, high-speed GPS/GLONASS receiver that updates your position ten times per second, ideal for accurately tracking the motion of fast-moving powerboats. In outside bracket-mount installations, and in flush-mount installations in many fiberglass boats, this removes the need to purchase and install a separate GPS receive
- Integrated Sounder: A built-in sounder module equips every NSS evo3 display with a wealth of sonar technologies to suit many sportfishing and cruising applications. StructureScan HD imaging combines DownScan and SideScan sonar to provide a picture-like views of fish holding structure, while ForwardScan sonar offers a safer cruising experience with a clear view of the bottom ahead. Broadband Soun
- TripIntel Technology: Designed for powerboaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips. While underway, the Cruise Performance Indicator makes it easy to tune trim and th
- Refined User Interface: Switch seamlessly between intuitive touchscreen control with multi-touch gestures, and a full built-in keypad with rotary control dial. Every display function can be controlled by either the touchscreen or the keypad, giving you the flexibility to use whatever controls best suit current conditions and the task at hand. NSS evo3 s full keypad controls also mean you can choos
- Display Type: High-visibility SolarMax HD IPS optically bonded TFT
- Screen Size: 7" diagonal
- Screen Resolution: 600 x 1024
- Included Cartography: World basemap (no detailed charts)
- Optional Cartography: Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
- Data Interface: NMEA 2000, NMEA 0183
- Receiver Type: Internal 10Hz, 34-channel WASS, MSAS, EGNOS, GLONASS
- Sonar: Sonar port 1: Single channel CHIRP, 50/200khz, HDI. Sonar port 2: Single channel CHIRP, 50/200khz, TotalScan, LSS HD, ForwardScan. Compatible with SonarHub, BSM-3, BSM-2 sonar modules
- Transmit Power: 1kW (RMS)
- Transducers: Sold separately
- Dimensions: 9 3/8"W x 5 7/8"H x 3 1/2"D
- Voltage: 10-31.2V DC
- External Storage: 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
- Internal Storage: 16 GB
- Waypoints and Routes: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Waterproof Rating: IPX6 and IPX7
- Warranty: Two years
Dimensions
9 3/8" Width x 5 7/8" Height x 3 1/2" Depth
Type
Fishfinder/Chartplotter Combo
Warranty
Two Years , Five Years Optional Purchase Plan with Certified Installation
Maximum Depth
1000 Feet (mid/high CHIRP) , 300 Feet (Downscan) , 300 Feet (Sidescan)
Waterproof
Waterproof
Mount Type
Flush , Surface , Tilt , Bracket Pedestal
Display Color
Color
Cartography
Includes Insight USA Inland/Lake and Coastal Cartography
Diagonal Screen Size
7 Inches
Display Shape
Horizontal
Sonar
CHIRP Sonar , Down Imaging , Side Imaging
Specific Transducer
Transducer Not Included
Transmit Power
1000 Watts (RMS)

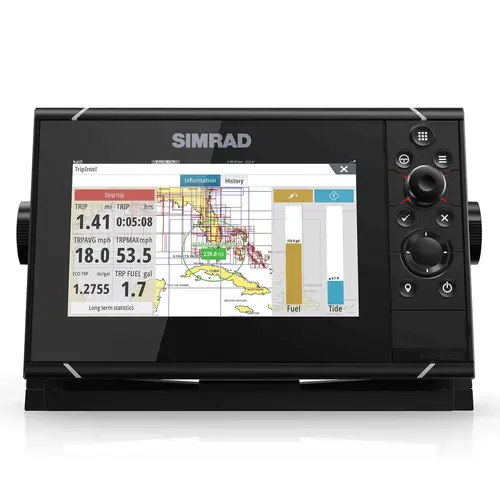

Product Overview
Bright new SolarMAX display with great sunlight viewing performance and wide viewing angles, elegant touch and keypad interface, plus all the networking you need. Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX HD display technology delivers exceptional clarity and ultra-wide viewing angles (80 degree top/bottom, 80 degree left/right), combined with an all-weather touchscreen and expanded keypad for total control in all conditions. NSS evo3 includes built-in GoFree Wi-Fi, true dual-channel CHIRP sonar, and much more.
