Functions:
Cylinder x Thumbturn (E2151)
Applications:
Heavy Duty Commercial
Notes:
Certifications:
Finishes:
US3, US4, US10B, US26 and US26D
Options:
Warranty:
Lifetime
Cylinders/Cores:
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

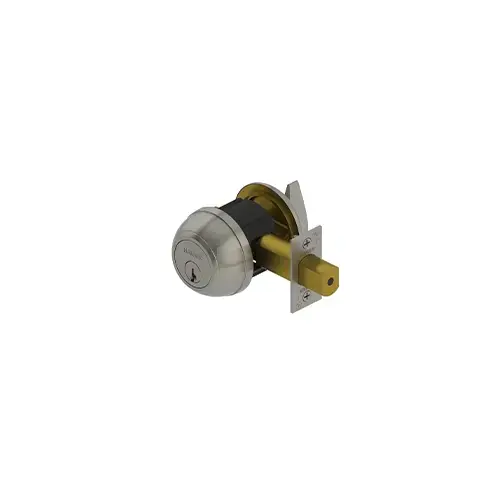

Hager 028120 3115 Single Cylinder Deadbolt Satin Chrome Finish
Item #: 028120 by Hager
UPC #: 041359281207
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Grade 1 Single Cylinder Deadbolt
- For Doors 1-3/8" To 1-3/4" Thick
- Curved Design Prevents Wrenching
- Non Handed
- Anti-Pry Fire Shield Adds Security And Eases Installation
Function
Single Cylinder
Finish
Satin Chrome
Backset
2-3/4"
Strike
Square Corner Deadbolt Strike
Series
Hager 3100 Series
Warranty
Lifetime
Door Thickness
- 1-3/4" - 2" (45 mm - 51 mm) - Standard
- 2-1/4" (57 mm) - Optional for conventional keyed only
Strikes
- 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike - standard
- 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA deadbolt strike – optional
Deadbolt
- 1" (25 mm) throw, brass with concealed hardened steel roller
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
Notes
- SFIC option available (Cores are sold separately - standard)
- Non-handed
Backsets
- 2-3/4" (70 mm)
- 2-3/8" (60 mm)
Exposed Trim
Wrought Brass or Bronze
BACKSET in. - LOCKS
2-3/4
LATCH OPTIONS / CAMS / TAILPIECES
STANDARD
KEYWAY - LOCKS
SCHLAGE C
MISC. - LOCKS
NOT APPLICABLE
STRIKES - LOCKS
STANDARD
KEYING - LOCKS
SCHLAGE C
HANDING / MISC. - LOCKS
US26D - SATIN CHROMIUM
Keys
Two operating keys supplied per lock
Keyway
Schlage C - Standard, other keyways available
FINISHES - LOCKS
US26D - SATIN CHROMIUM
Dimension
1-1/16" Exterior Projection; 1-9/32" Interior Projection
Material
Wrought Brass and Steel Chassis
Manufacturer Warranty
Limited Lifetime Warranty and 1 Year Finish Warranty
UL Listing Type
UL/cUL Listed for all functions up to 3 Hours
Door Range
1-3/4" to 2"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
US26D
Latch Faceplate Dimension
1-1/8" x 2-1/4"
No of inners
1
No Of Pins
6 Pin Cylinder
Product Overview
Functions:
Cylinder x Thumbturn (E2151)
Applications:
Heavy Duty Commercial
Notes:
- SFIC option available (Cores are sold separately - standard)
- Non-handed
Certifications:
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.36, Grade 1
- ANSI A250.13 Severe Windstorm Compliant
- Miami Dade County, FL NOA #18-0816.08
Finishes:
US3, US4, US10B, US26 and US26D
Options:
- Split Finish
- Additional Deadbolts and strikes available
Warranty:
Lifetime
Cylinders/Cores:
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
