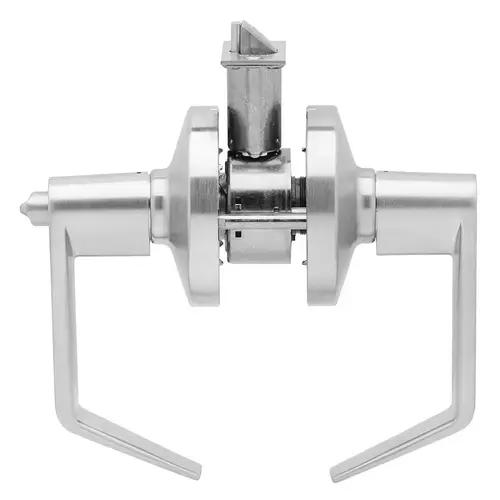

Falcon W511BD D 613 Single Cylinder Grade 2 Dane Entry/Office Door Lever Set with Small Format Interchangeable Core from the W Collection Dark Oxidized Satin Bronze
Item #: W511BD D 613 by Falcon
Brand: Falcon
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Heavy Duty Torsion Springs to Prevent Lever Sag
- Door Thickness: 1-3/8” to 1-3/4” standard.
- Backset: 2-3/4” standard; 2-3/8” also available.
- Priced to Provide Value for Low Traffic, Low Budget Doors and Projects
- Does Not Require Field Disassembly for Rehanding, Allowing for Easy Installation and Maintenance
- Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Non Handed Design
- Limited 10 Year Warranty
- Handing: Locks are non-handed.
- Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL: 3-hour A label.
Finish
Oil Rubbed Bronze
Function
Entry
Series
W Series
Design
Dane
Theme
Modern
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Approved for Commercial Use
Yes
UL Listed
Yes
Product Class
Commercial
Configuration
Lever Set
Projection
2.6875
Door Thickness
1-3/4", 1-3/8"
Rose Diameter
2.9325
ADA
Yes
ANSI Certification
A156.2
BHMA Certification
Grade 2
Cylinder
6 Pin
Fire Rated
Yes
Manufacturer Warranty
10 Year
Panic Proof
Yes
Shape
Flat
Material
Brass, Steel
Width
2.125
Backset
2-3/4"
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Grade
Grade 2
ANSI/BHMA Standards
F109
Keyway
None (Select for Less Cylinder Option)
Keyed
Yes
Handle Type
Lever
Collection
W511 series
Strike
30-150: 1-5/8" x 2-1/4" Radius Corner Full Lip Strike with 1" Lip
Keying
None (Select for Less Cylinder Options)
Electronic
No
Door Handing
Non-Handed
Lever Style
Dane
Standard Strike
ANSI 1-1/4" x 4-7/8" Curved Lip
Rose Type
Standard Rose - 3-3/8"
Latch
30-200: DeadLatch - 2-3/8" Backset - Square corner, 1-1/8" x 2-1/4", Restoring
Lock Type
Cylindrical
Duty Level
Medium Duty
Cylinder and Keyways
G Keyway
Standard Latch
1/2" Throw
Product Overview
Entry/Office Lock, SFIC Prep, Less Core, Dane Lever, Oil Rubbed Bronze
Whether your application is government/military, retail, industrial or multi-family, there's a W Series lock that fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business - Allegion.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
