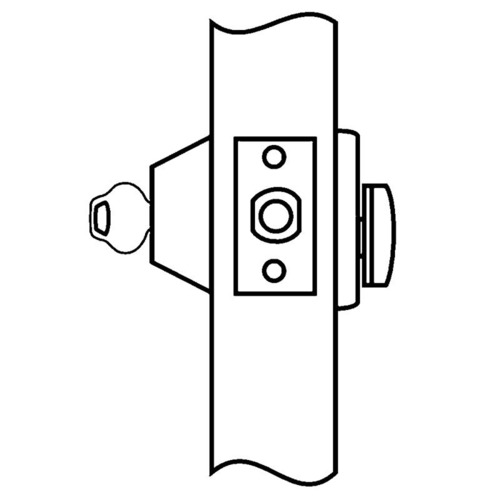

Corbin Russwin DL2213 626 DL2213 Single Cylinder Deadlock, Satin Chrome

Item #: DL2213 626 by Corbin Russwin

See reviews

In Stock $108.03 /each

SAVE UP TO 10.80

Buying in bulk

Roll over image to zoom in

Corbin Russwin DL2213 626 DL2213 Single Cylinder Deadlock, Satin Chrome

Item #: DL2213 626 by Corbin Russwin

See reviews See reviews

In Stock $108.03 /each

SAVE UP TO 10.80

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Handing: Non-handed.
  • Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
  • Backset: Standard - 2-3/4" (70mm); Optional: 2-3/8" (60mm)
  • Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
  • Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
  • Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
  • Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
  • Keys: Two nickel silver standard.
  • Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
  • Warranty: One-year limited.

Thickness

1-3/4 In.

Package Volume

126

Color

Satin Chromium Plated

Function

13-Cylinder x Thumbturn Deadbolt

Latch Type

Deadbolt

Burglar Rated

No

Hand

Not Handed

Fire Rated

3 Hours {A}

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Key(s)

Cut

Dust Box

None

Strike Width

1-1/8 In.

Latch Backset Dim

2-3/4 In.

Cylinder Type

Conventional Cylinder

Package Qty

1

Package Height

4"

Screws

Combination

Keying

Keyed Different

Package Width

4"

Bolt Protection

1 In.

Color Code

626/US26D

Strike Type

Flat

Keyway

Corbin Russwin L4

Strike Height

2-3/4 In.

Package Length

7.875"

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 2

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Finish Description

Satin Chrome

Keyblank Grouping

CRRS-L4-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Auxiliary Lock

Strike

Deadbolt, 1-1/8" x 2-3/4", Square Corner

Keying Charges

CCAM

Grade 2, Single Cylinder, 626 Satin Chrome, 2-3/4" Backset, Keyed Random
DL2200 SeriesDeadlocks

Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.

Specifications: Certification:
  • UL10B/UL10C Fire Rated Auxiliary Lock for A label and lesser class doors when used with a correspondingly rated primary latching device.
  • ANSI/BHMA A156.36 Certified Grade 2
Handing:
  • Non-handed
Door Thickness:
  • Standard: 1-3/4" (44mm)
Backset:
  • Standard: 2-3/4" (70mm)
Front:
  • Standard: brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm)
Deadbolt:
  • 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert
Strike:
  • Standard; 2-3/4" (70mm) x 1-1/8" (29mm)
Cylinder:
  • Standard: brass, 6-pin, L4 keyway, 0-bitted
Keys:
  • Two nickel silver standard
Keying Features Available:
  • Master keying
  • Construction master keying
  • Security
  • Visual key control
  • Concealed key control
Warranty:
  • One-year limited

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
